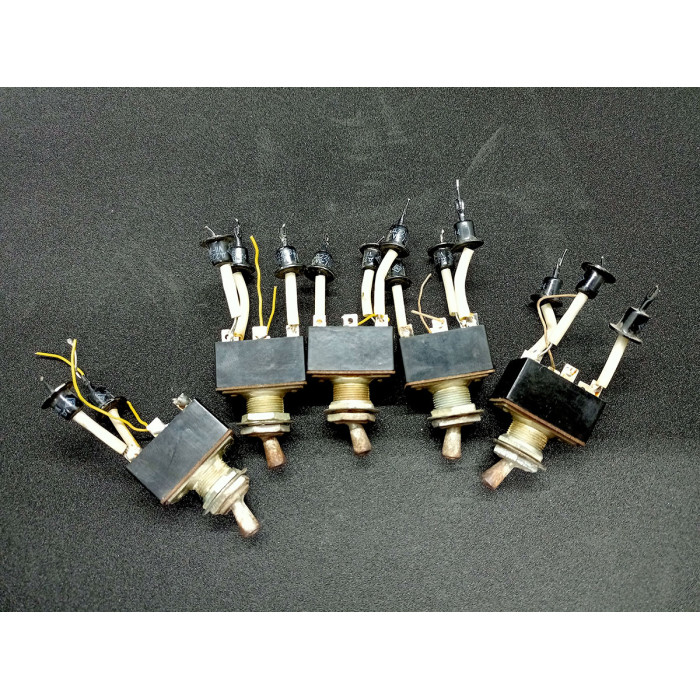

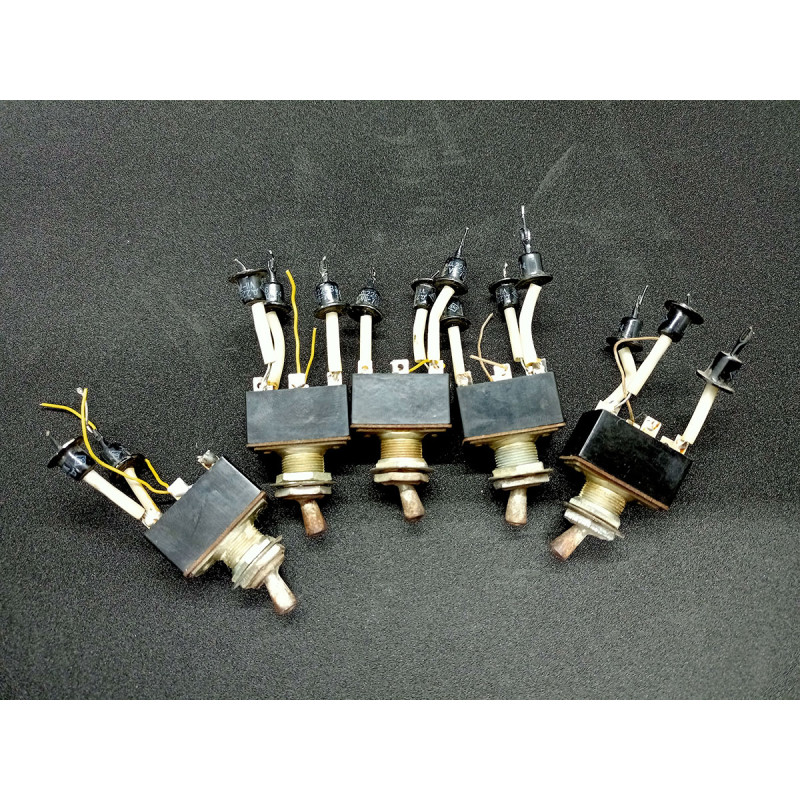

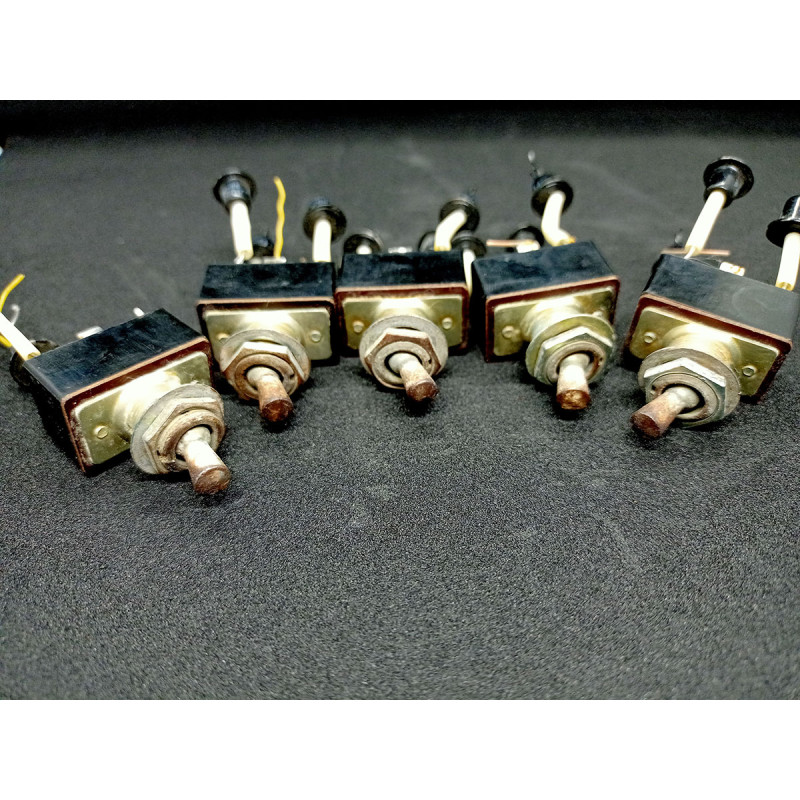

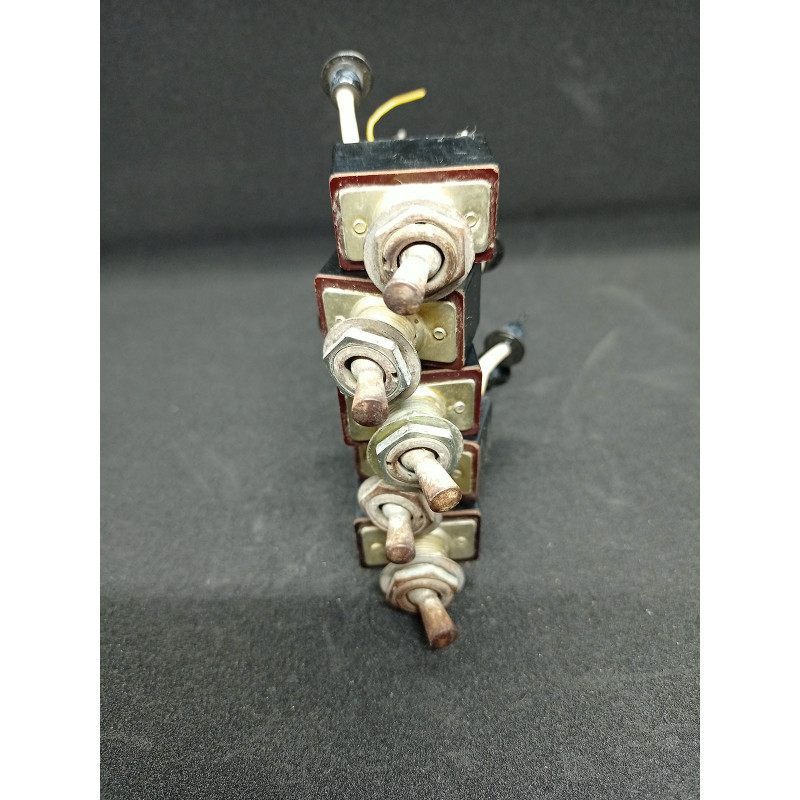

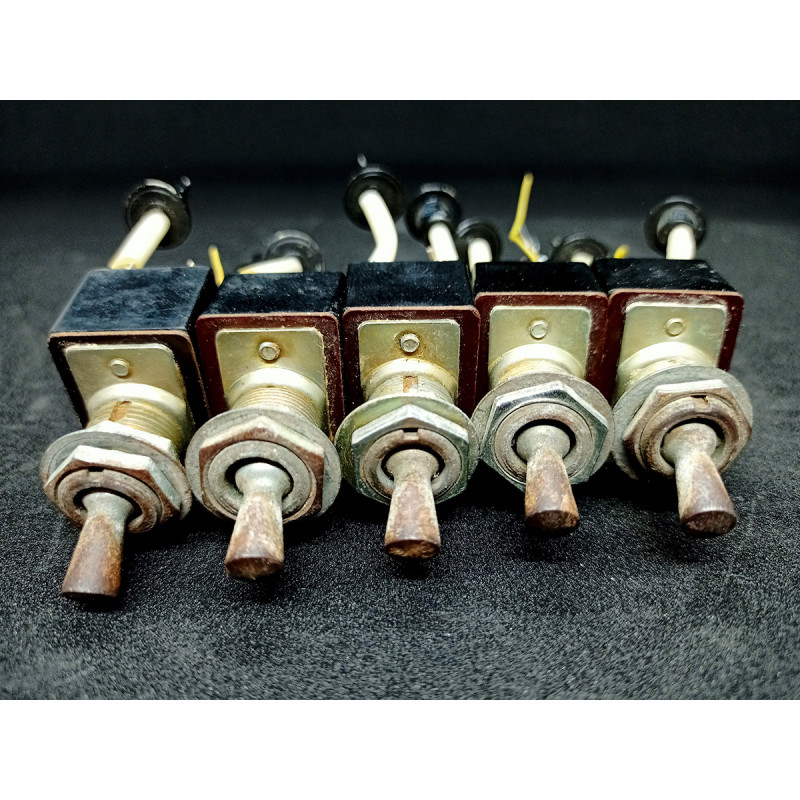

Soviet VINTAGE on / off Set of 5 TOGGLE SWITCHES Old Russian electrical switches Industrial on off decor steampunk

Description Soviet VINTAGE on / off Set of 5 TOGGLE SWITCHES Old Russian electrical switches Industrial on off decor steampunk

I sell these switches as a decorative item, but most of them may be functional.

Toggle switch TP1-2 is a two-pole switch for 2 positions ON-ON, with latching. Designed for switching signaling and control circuits of direct and alternating current with a voltage of 220 Volts and a current strength of 2 Amperes. The analogue of the TP1-2 toggle switch is designed for a load of 220V 3A or 110V 6A. The degree of protection of the case is IP40, the terminals are IP00.

Detailed technical characteristics and operating conditions of toggle switches TP1-2:
Type of current constant, alternating
Type of load active
Voltage 1.6 - 220 V
Current 0.001 - 2 A
Contact resistance, no more than 0.02 Ohm
Dielectric strength 1100 Veff
Insulation resistance, no less under normal climatic conditions 1000 megohm under high humidity conditions 2 megohm at a maximum temperature of 100 megohm
Switching force 3.9 - 14.7 N
Degree of protection of the case IP40
Degree of protection of terminals IP00
Ambient temperature -60 ° C - + 70 ° C
Relative humidity up to 98% at + 25 ° C
Atmospheric pressure 2 - 104 kPa
Climatic version UHL, V
Content of precious metals silver 0.2197 g
Panel mounting method
Mounting diameter Ø12 mm
