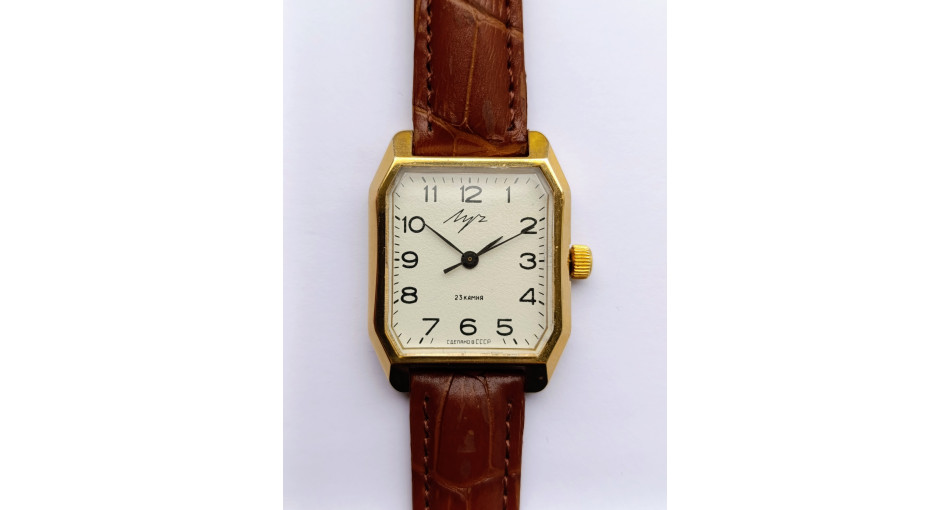

Inside the Luch 2209 — Servicing One of the Thinnest Soviet Calibers from Minsk

"In a thin caliber there is no room for excess — least of all a drop of oil. The right amount is the amount the eye can no longer see."
— Igor, watchmaker

This particular job arrived in the least ceremonious way possible — inside a small zip-lock bag, the watch already taken apart by someone else. That is not the obstacle it might seem. The case, the movement and a scatter of small parts were all present, and once a caliber is understood, putting the pieces back where they belong is simply a matter of order and patience. The watch is a Luch on the 2209 caliber, housed in a rectangular gold-plated case. The case goes straight into the cleaning solution while the movement takes its place on the bench.

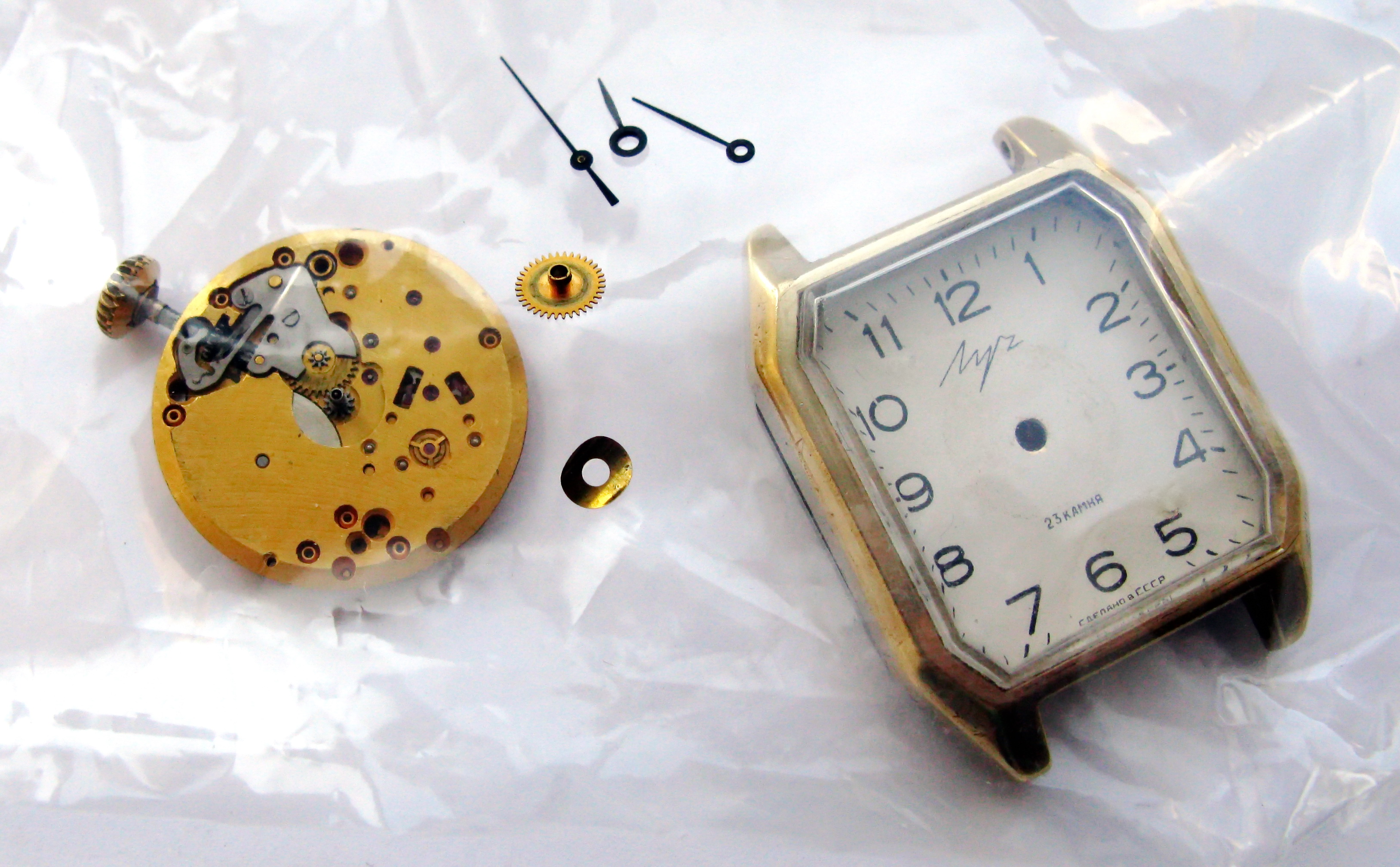

The dismantled Luch wristwatch as received, with the gilt rectangular case and dial beside the loose mainplate, hands and winding components. — The patient as it arrived: a rectangular gold-plated Luch already broken down into its case, dial, three hands and a partly stripped mainplate, with the crown wheel and a ratchet washer loose alongside.

A few words about the movement before the tools come out. The Luch 2209, made by the Minsk Watch Factory, is one of the slimmest mechanical calibers the Soviet industry ever produced. In its day that was squarely in step with the international fashion — the thinner the movement, the more modern the watch. Its road to Minsk was not without detours, but production eventually settled at the Luch plant. The specification reads as follows: 18,000 vibrations per hour; three hands with a sweep center seconds; 23 jewels; a power reserve of 41 hours; and an overall height of just 2.9 millimetres. The same caliber powered watches sold under the Vympel and Poljot 2209 names.

To achieve that height the designers resorted to an unusual solution: there is no center wheel at all. In its place sits a central pinion, while the large-diameter center wheel has been divided into two smaller wheels — something that becomes clear once the bridges come off. Over its life the caliber was refined further, gaining a screwless balance and an improved index regulator. Servicing and regulation present no real difficulty. The mainplate and bridges are protected against corrosion by a yellow coating, and for all its apparent fragility the movement has proven both reliable and remarkably long-lived.

Letting Down the Mainspring and Lifting the Balance

The caliber goes onto the holder fast-side up. The first act is to let down the mainspring — this is not optional, because attempting a strip-down under power risks bending the pallet fork. The second is to remove the most delicate part of the watch, the balance, which is set aside with its cock screw and washer. It will be cleaned later, rinsed in fresh benzine to clear the impulse jewel and the hairspring of contamination.

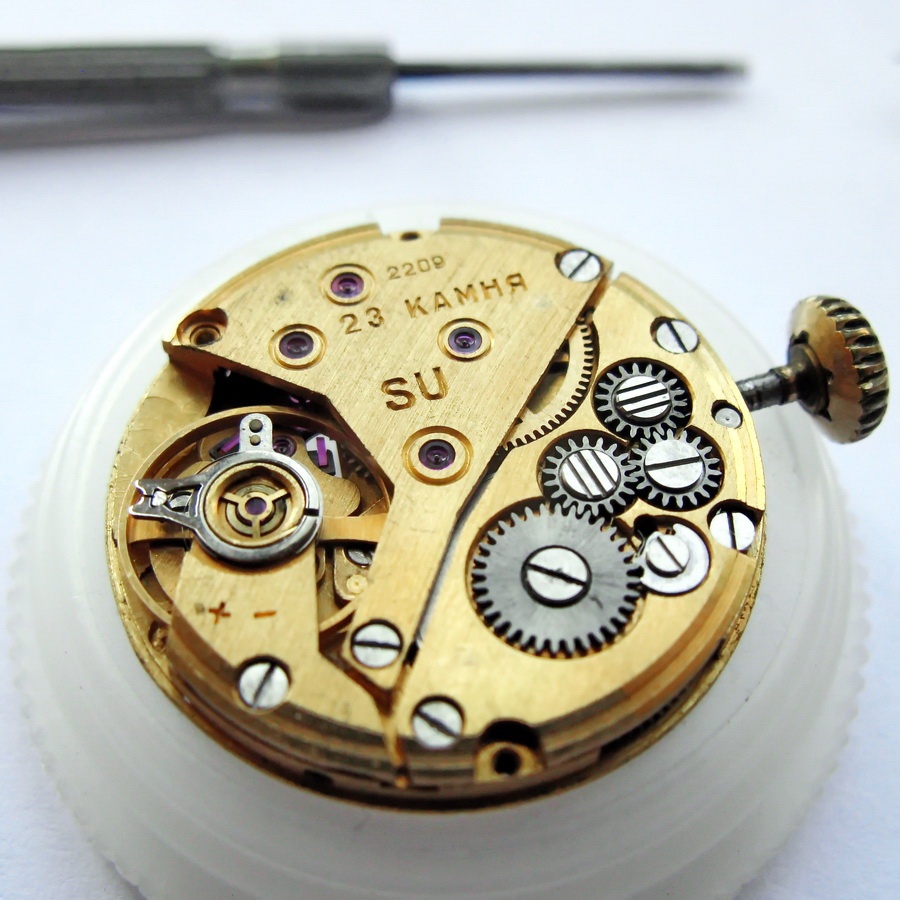

Train side of the caliber 2209 on a movement holder with the balance still fitted, the bridge engraved 2209, 23 jewels and SU. — Work begins with the movement clamped fast-side up. The engraving 2209 / 23 КАМНЯ / SU identifies the Minsk caliber, with the going train and the crown and stem to the right.

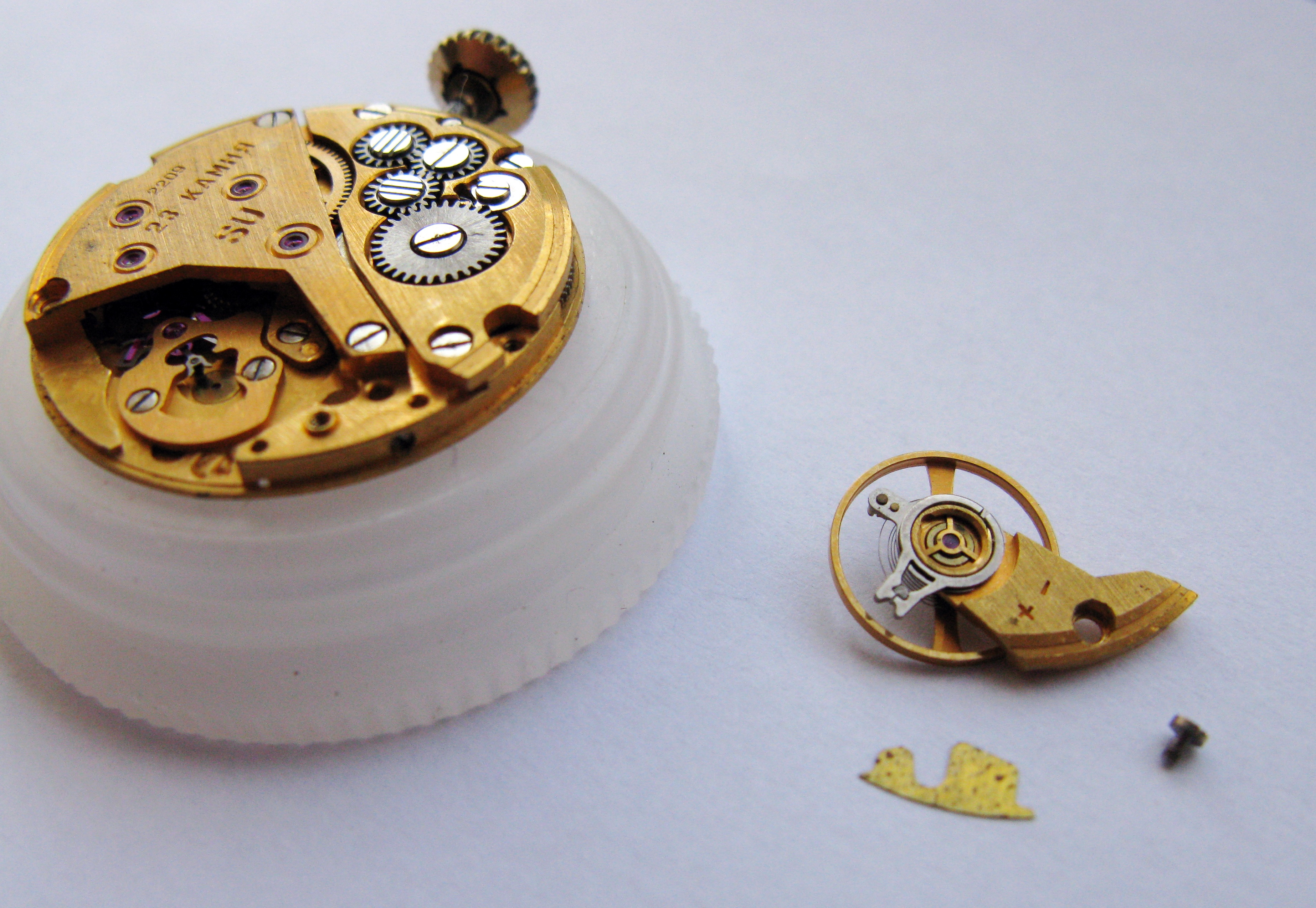

Balance assembly lifted clear of the movement and placed to one side with its stud screw. — The balance, the most fragile component in the watch, is removed early and laid aside with its cock screw and washer, leaving its seat on the plate empty.

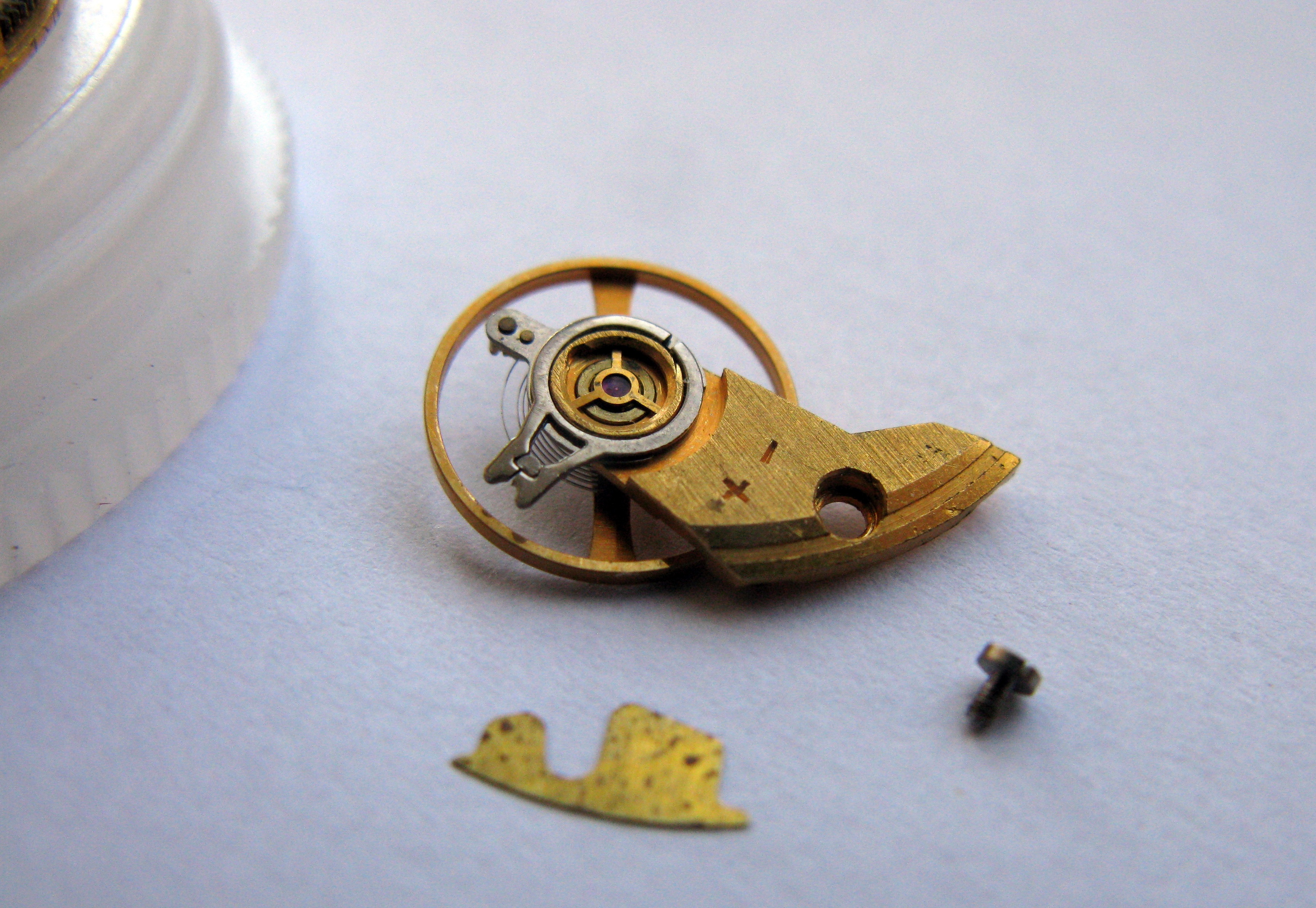

Close-up of the removed balance and cock showing the regulator and a small leaf spring. — The complete balance and cock, with regulator curb and pins visible. The screwless balance seen here is one of the refinements the caliber received during its production run.

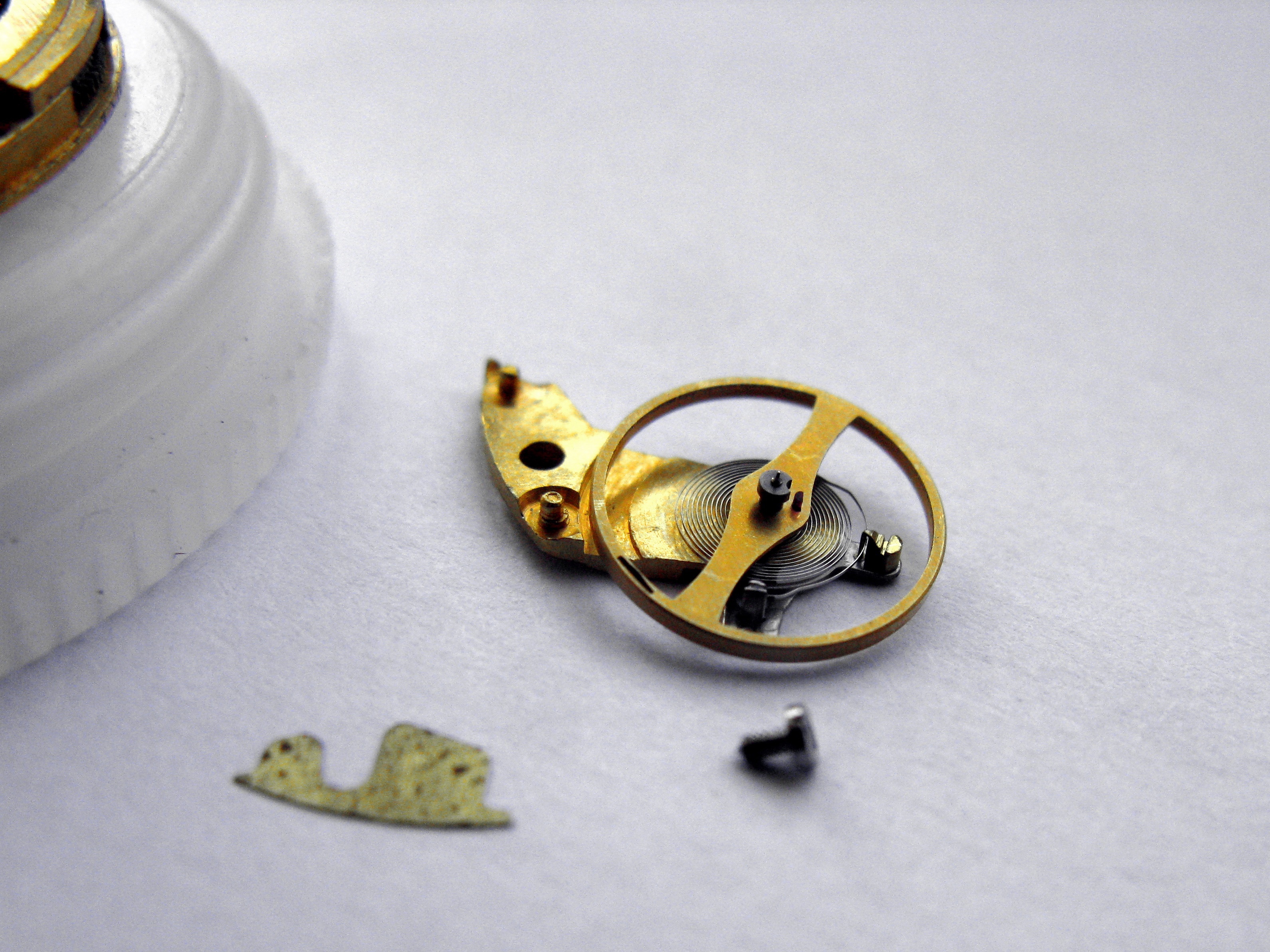

The detached balance turned over to show the flat hairspring coiled beneath the cock. — Flipped over, the flat hairspring and its collet are exposed. The assembly is kept entirely separate so the spiral is not disturbed during cleaning.

The Pallet Fork and a Telltale Fault

Next comes the pallet bridge. As with so many neglected movements, the fork here had effectively glued itself to the bridge jewel with congealed oil — the perennial reminder that lubricant belongs in measured amounts, not in generous ones. This, in fact, was the cause of the stoppage. The bridge with its attached fork is lowered into benzine for a few seconds until the fork lets go; the bridge stays soaking while the fork is rinsed briefly, blotted on a lint-free tissue and dried with a blower. The pallet stones are set in shellac — pure shellac does not dissolve in benzine, but a long soak is avoided all the same.

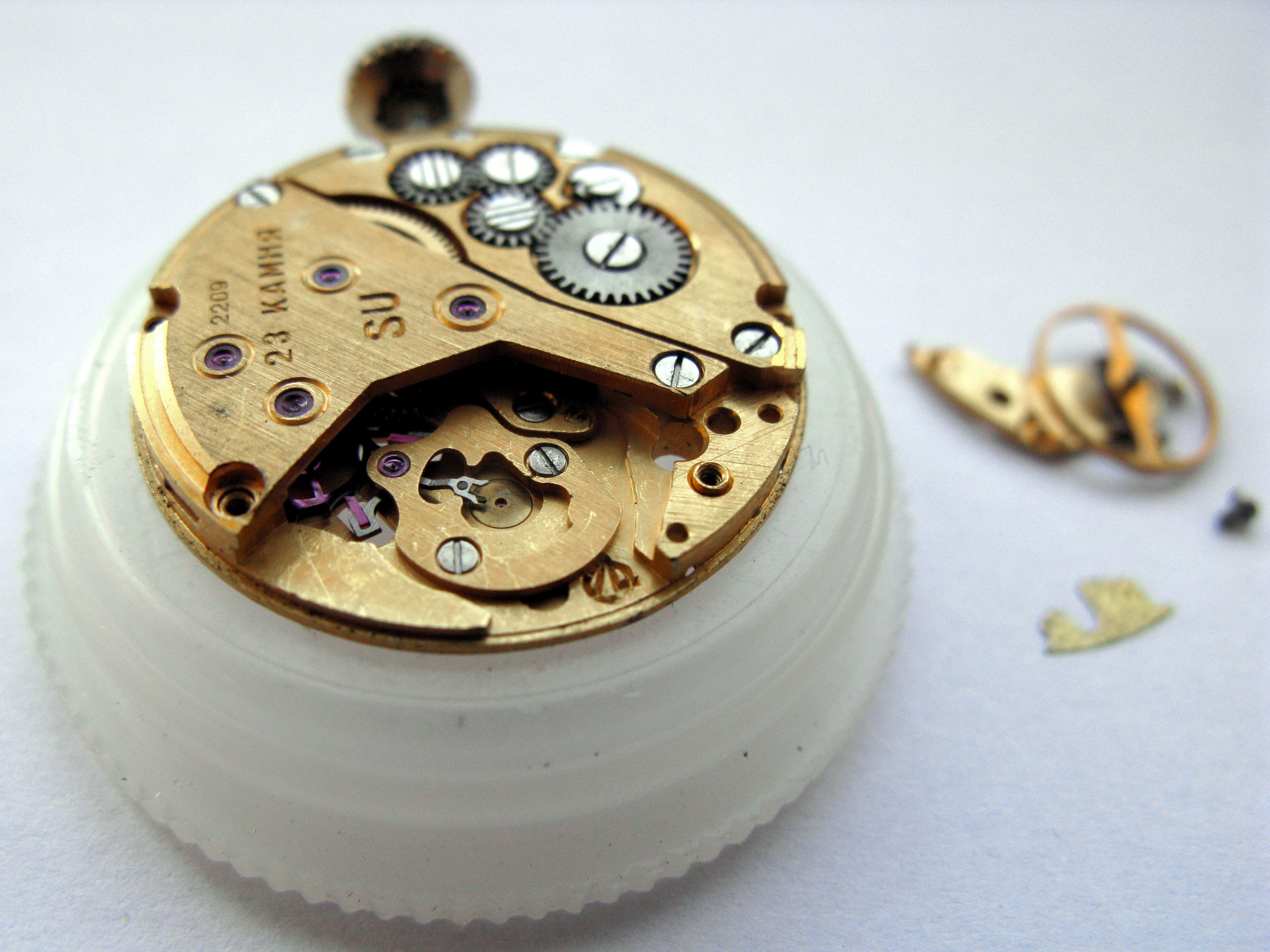

Train side with the pallet bridge lifted away and resting beside the movement. — The pallet bridge is freed next. Here the fork had cemented itself to the bridge jewel with thickened oil — the very fault that had brought the watch to a halt.

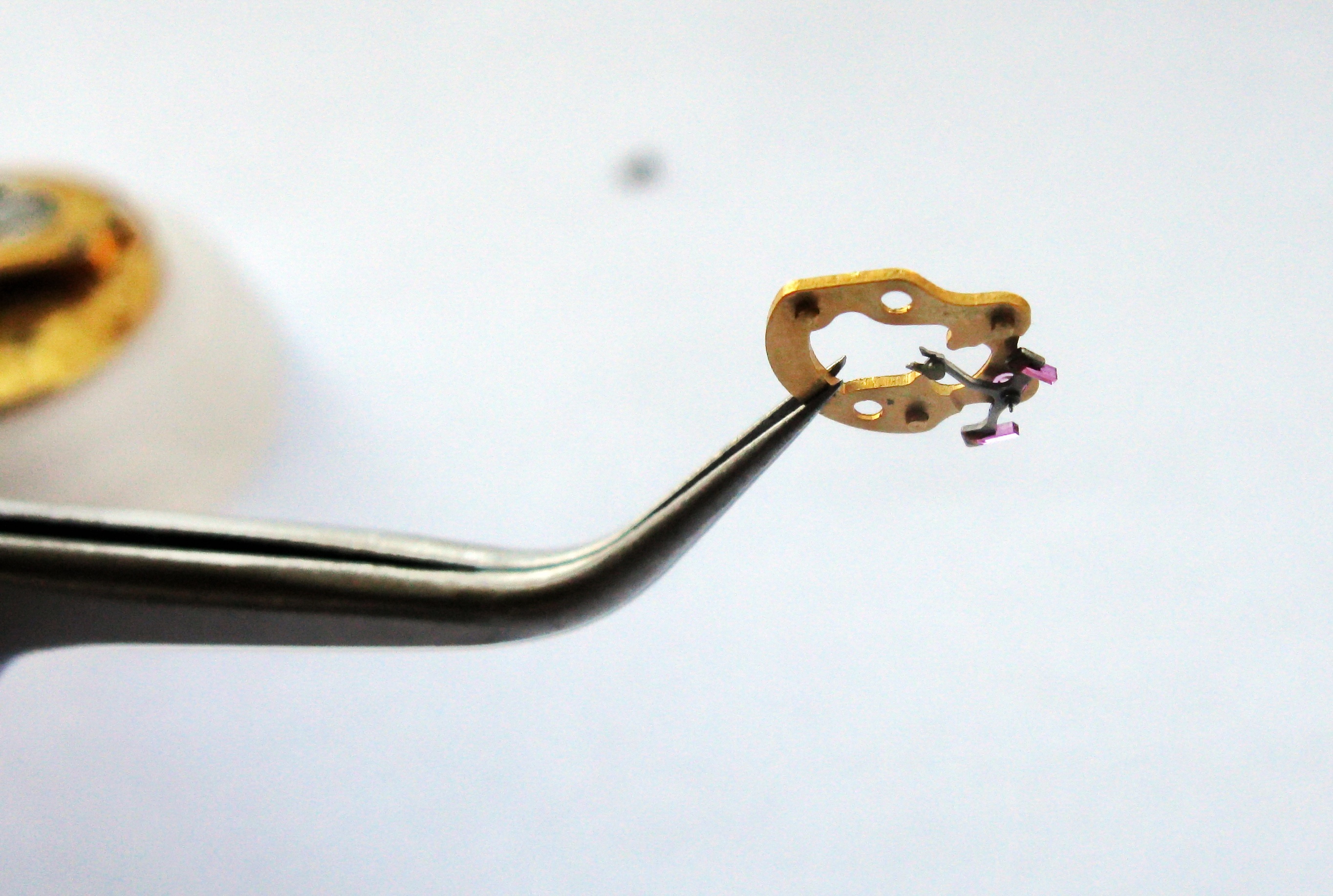

Tweezers holding the horseshoe-shaped pallet bridge with the pallet fork and its two pink pallet stones. — Lifted on tweezers, the pallet cock carries the fork with its two ruby pallet stones; a brief dip in benzine releases the gummed fork without endangering the shellac that holds the stones.

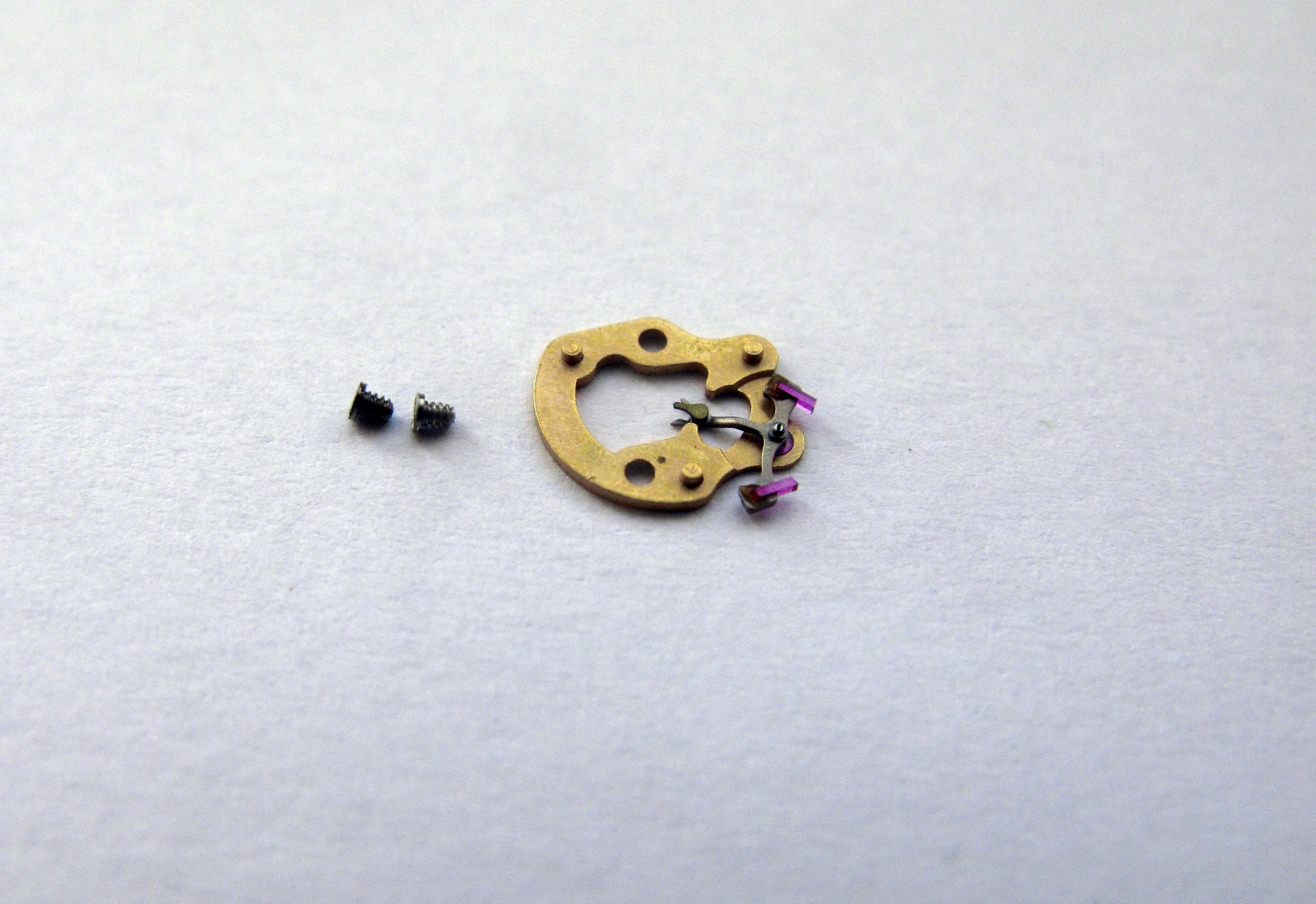

The pallet bridge and fork laid on paper next to their two fixing screws. — Bridge, fork and screws separated and laid out. The fork is rinsed only briefly as a precaution against loosening the shellaced stones.

Working Through the Going Train

With the escapement out of the way, attention turns to the going train. The train bridge is removed to reveal the system of wheels beneath. It is worth noting how the intermediate wheel is built as a stacked, compound unit — a deliberate measure to keep the overall stack as low and flat as possible. The wheels and the seconds pinion, the latter carrying the center-seconds arbor, are lifted out together.

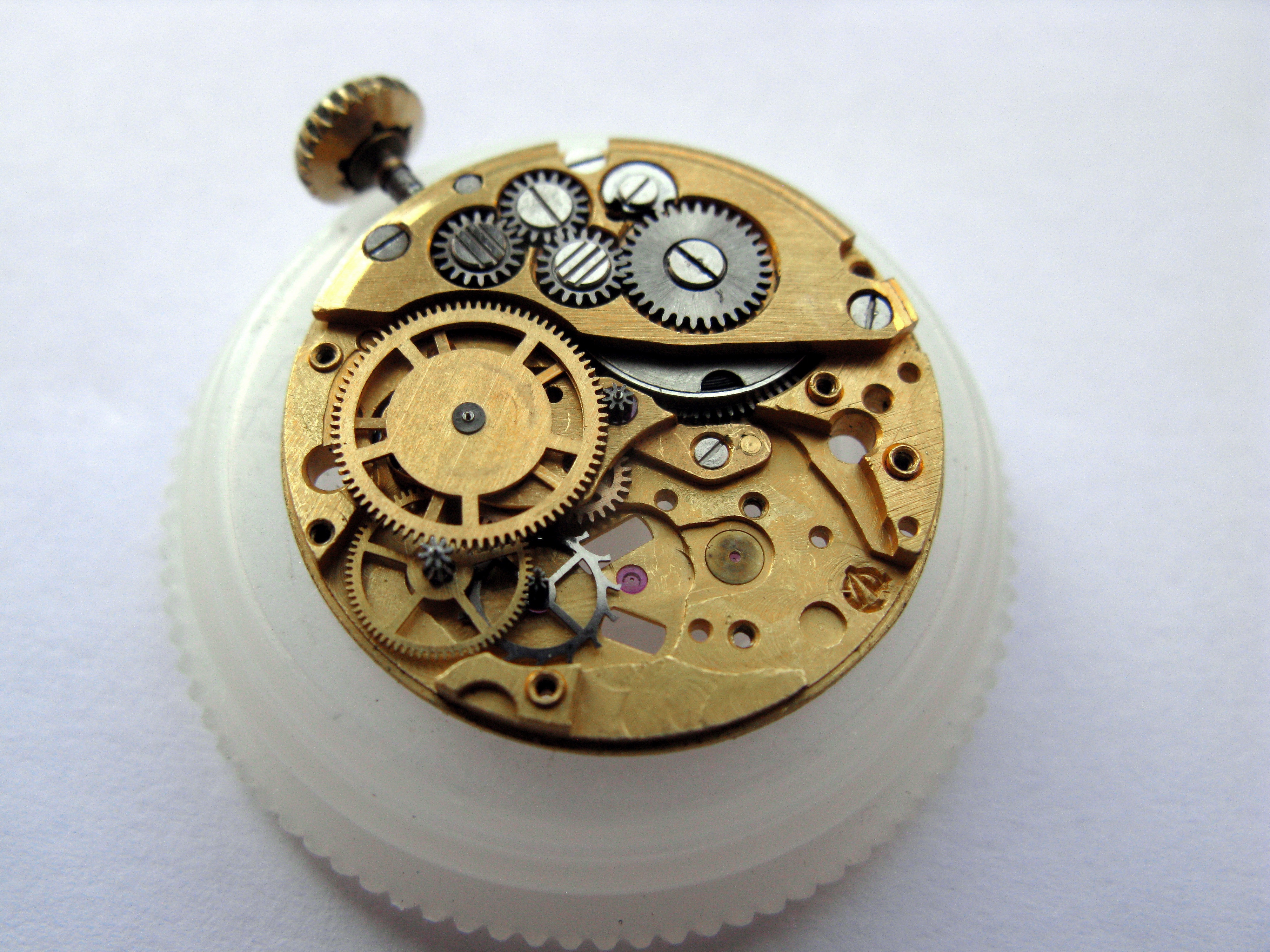

Train side overview showing the going train under its bridge and the barrel area. — The going train still under its bridge, with the ratchet and the large barrel-side wheel at upper right before disassembly begins.

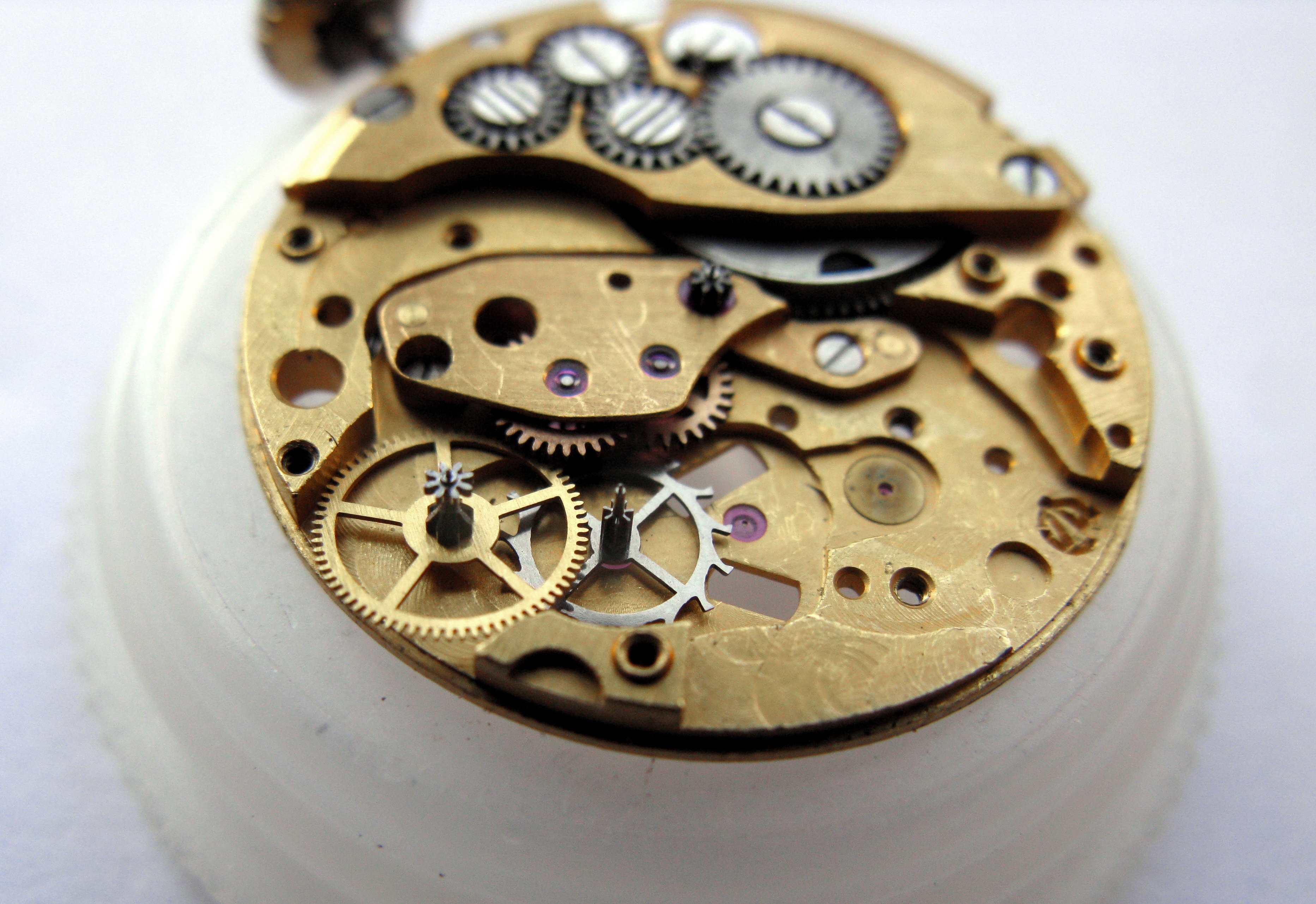

The train wheels exposed beneath the partially removed train bridge. — As the bridge comes away the train is revealed, and the sheer flatness of the assembly — the whole point of the caliber — becomes obvious.

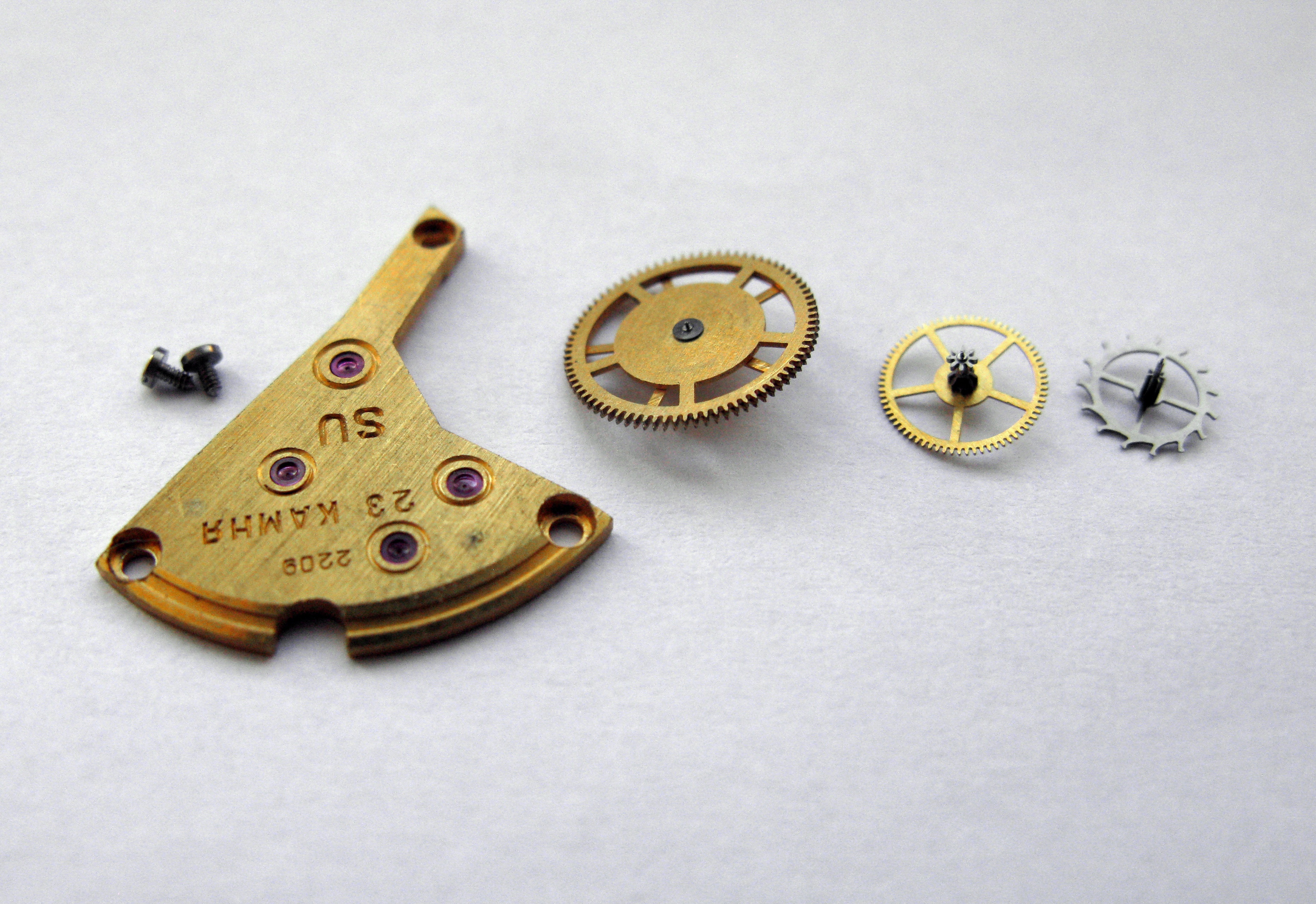

The removed fan-shaped train bridge on paper with the train wheels and two screws. — The train bridge lifted clear with its wheels. The compound intermediate wheel is built as a stacked pair — one of the tricks used to keep the movement thin.

The Heart of the Design: A Central Pinion and a Divided Center Wheel

We now reach the assembly that defines this caliber. Because there is no conventional center wheel, drive is carried instead by a central pinion, and the large center wheel that would normally occupy the middle of the movement has been split into two smaller wheels of modest diameter. The arrangement saves both height and footprint, and it is the single most distinctive feature of the 2209. Its bridge is removed — one of its screws is sunk in a well — along with the wheels and the central pinion, after the minute pinion has first been drawn off the slow side.

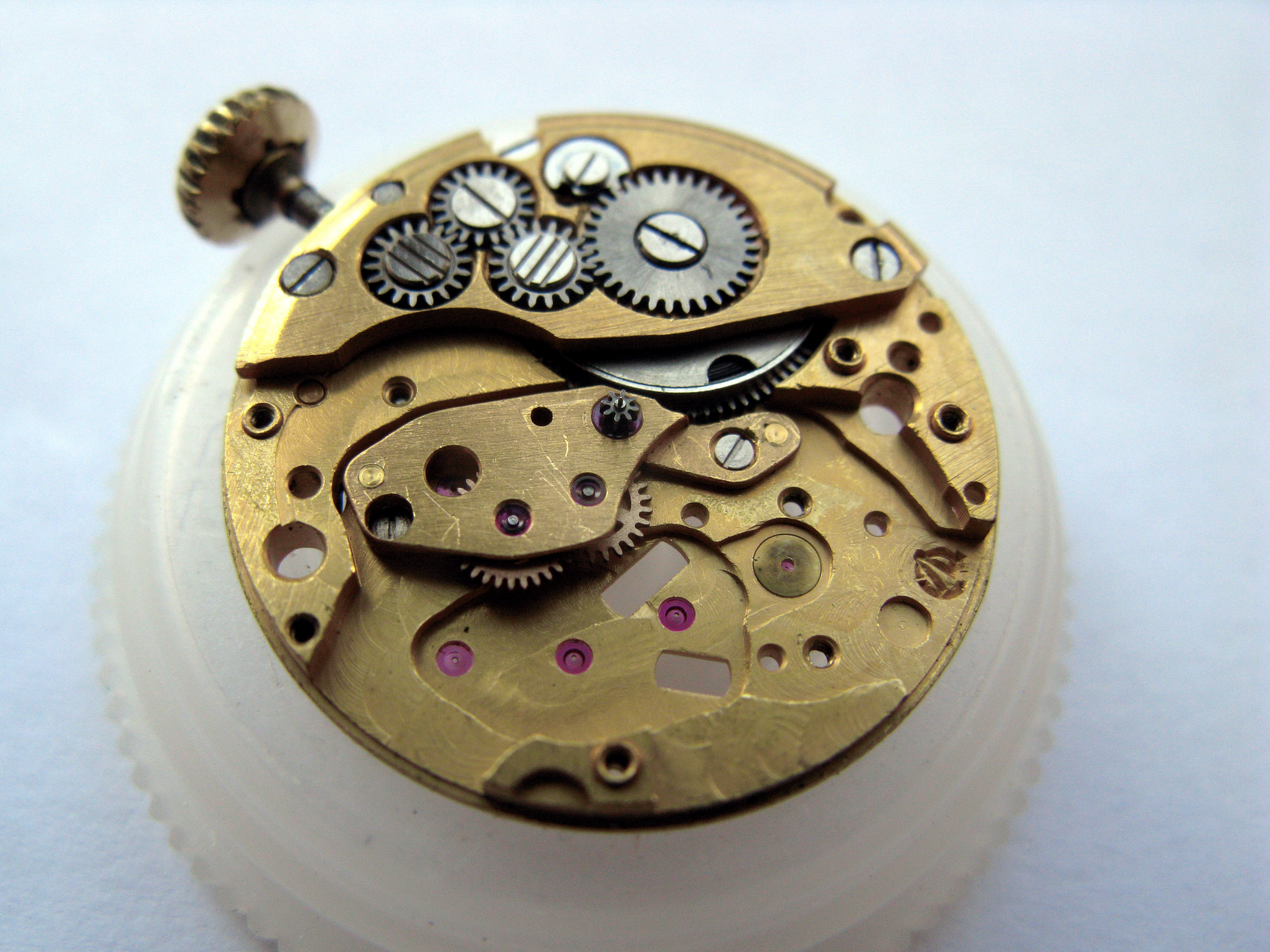

Train side with the central-wheels bridge exposed, pink jewels set into its elongated arm. — Below the train sits the central block. Lacking a normal center wheel, the 2209 routes power through a central pinion and a divided center wheel carried under this elongated bridge.

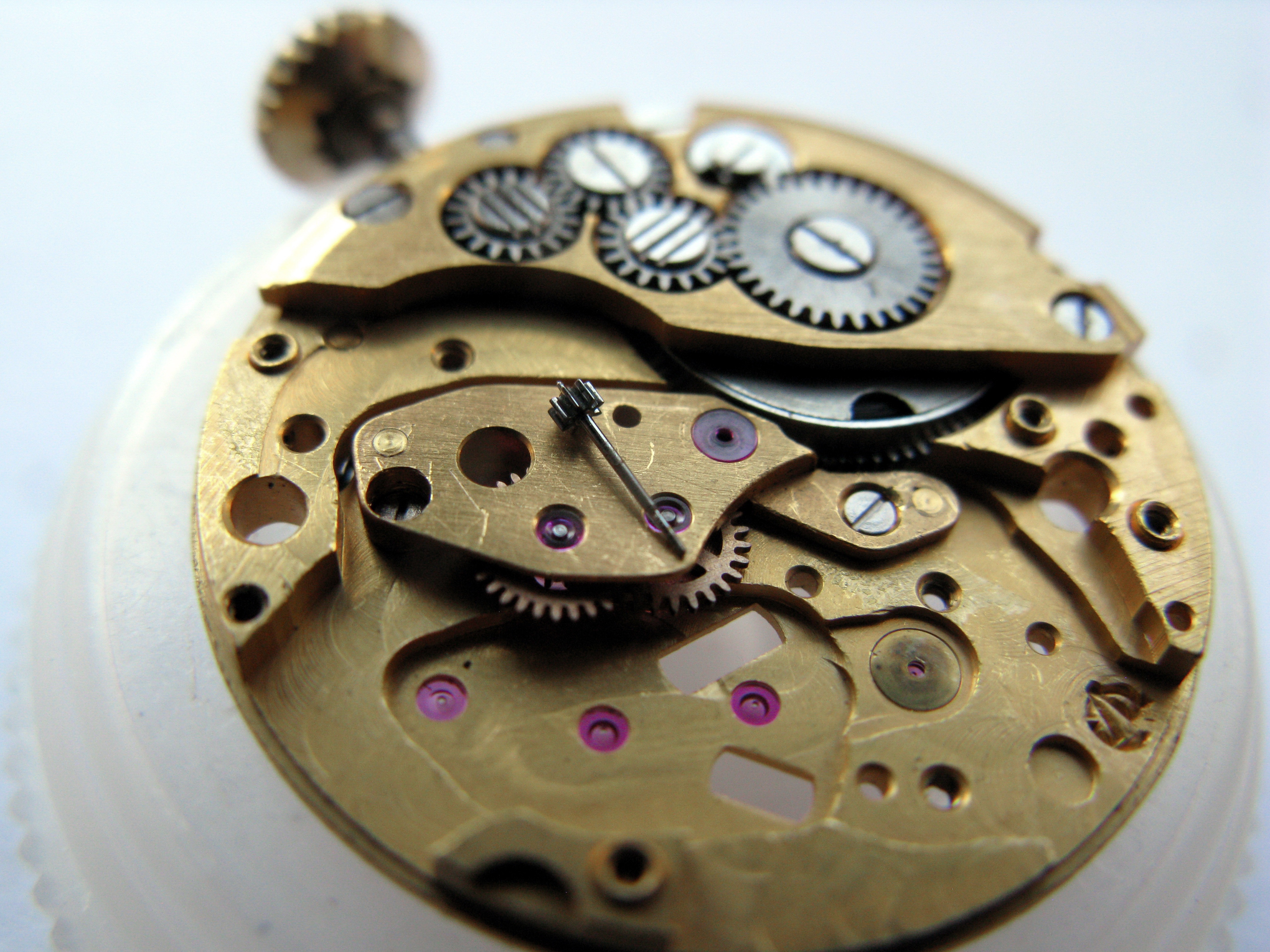

Low-angle view of the central block with a pivot standing proud of the bridge. — A closer look at the central assembly: splitting the large center wheel into two smaller ones is the key to reducing both the height and the diameter of the caliber.

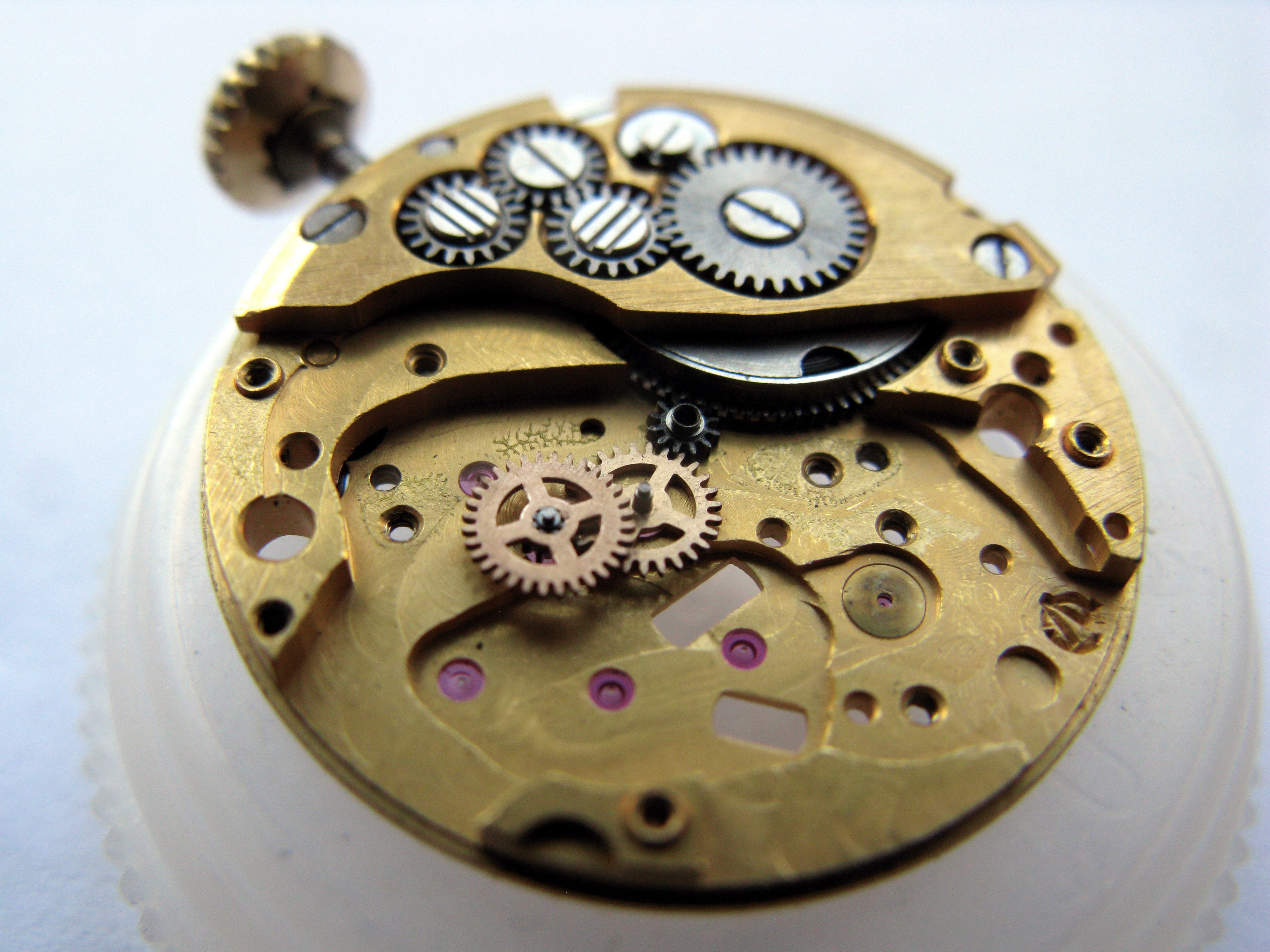

The central-wheels bridge being removed, a small jewelled wheel visible at center. — The central bridge is taken off — one screw is buried in a well — together with its wheels and the central pinion, the minute pinion having first been removed from the slow side.

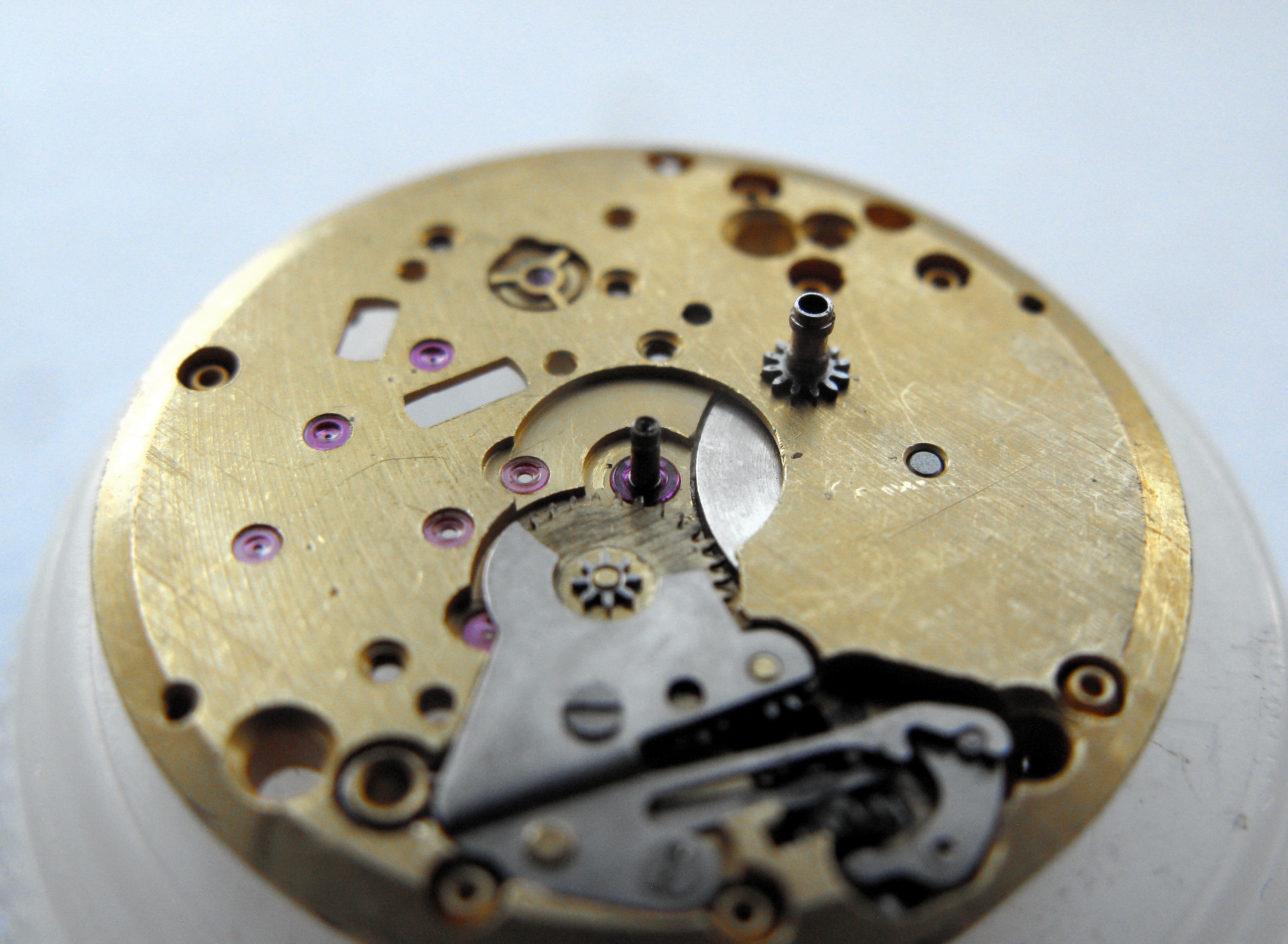

Mainplate with bridges removed, the central pinion standing up and the keyless steelwork below. — With the upper bridges gone, the central pinion stands exposed on the plate while the steel keyless components remain seated along the lower edge.

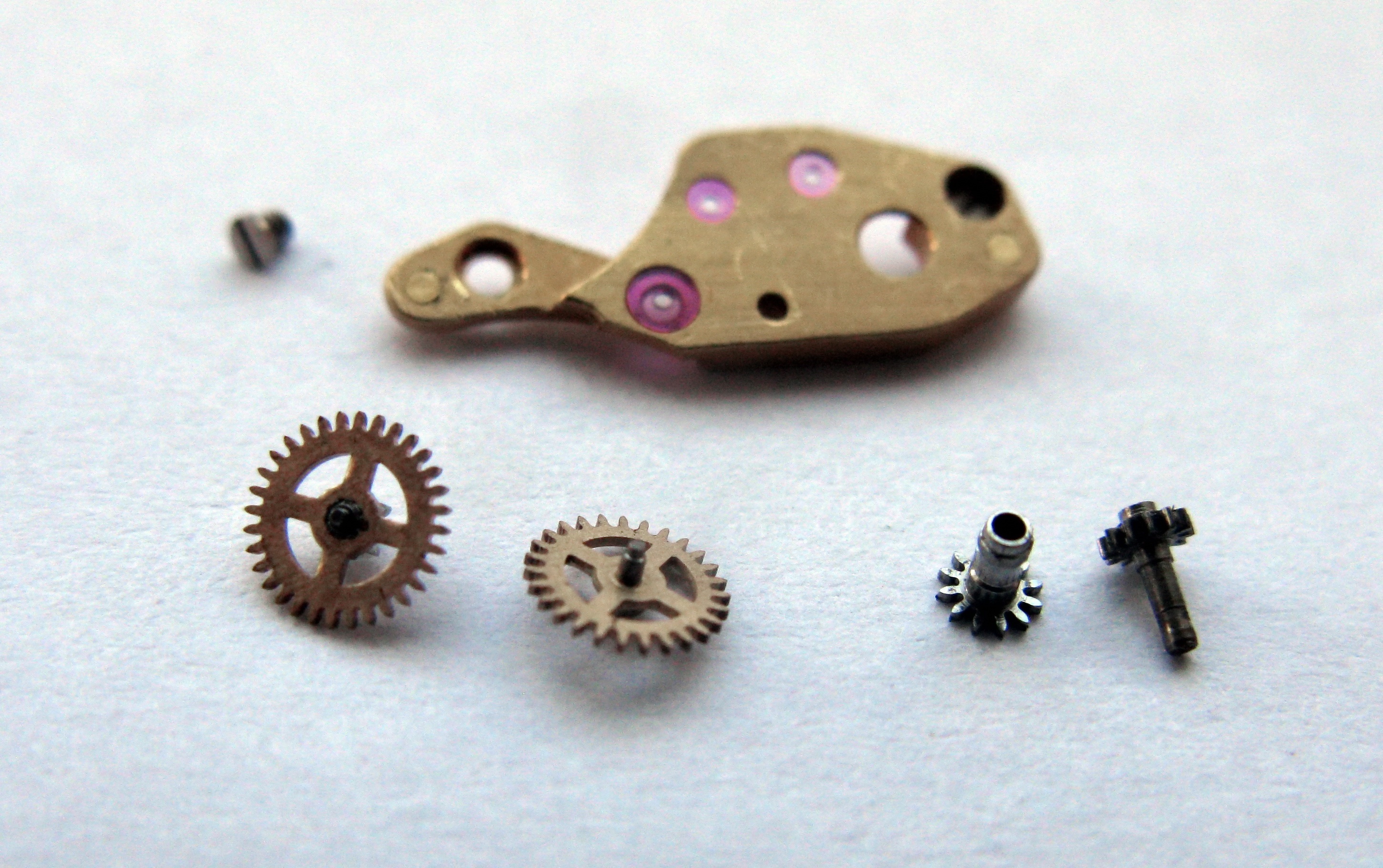

The central-wheels bridge on paper with the two split center wheels, the central pinion and a screw. — The central block laid out: the two halves of the divided center wheel, the central pinion on its staff, and the bridge with its jewels.

The Motor and Its Left-Hand Screws

The motor side holds no surprises beyond the number of transmission wheels that feed the barrel. One detail does demand attention: two of these wheels are secured by left-hand-thread screws, identifiable by the three slots cut into their heads. Turn them the wrong way and their small heads will simply shear off. Where there is no obvious dirt and the ultrasonic bath is doing its job, the whole assembly can be cleaned together with its bridge — there is no virtue in extra disassembly for its own sake.

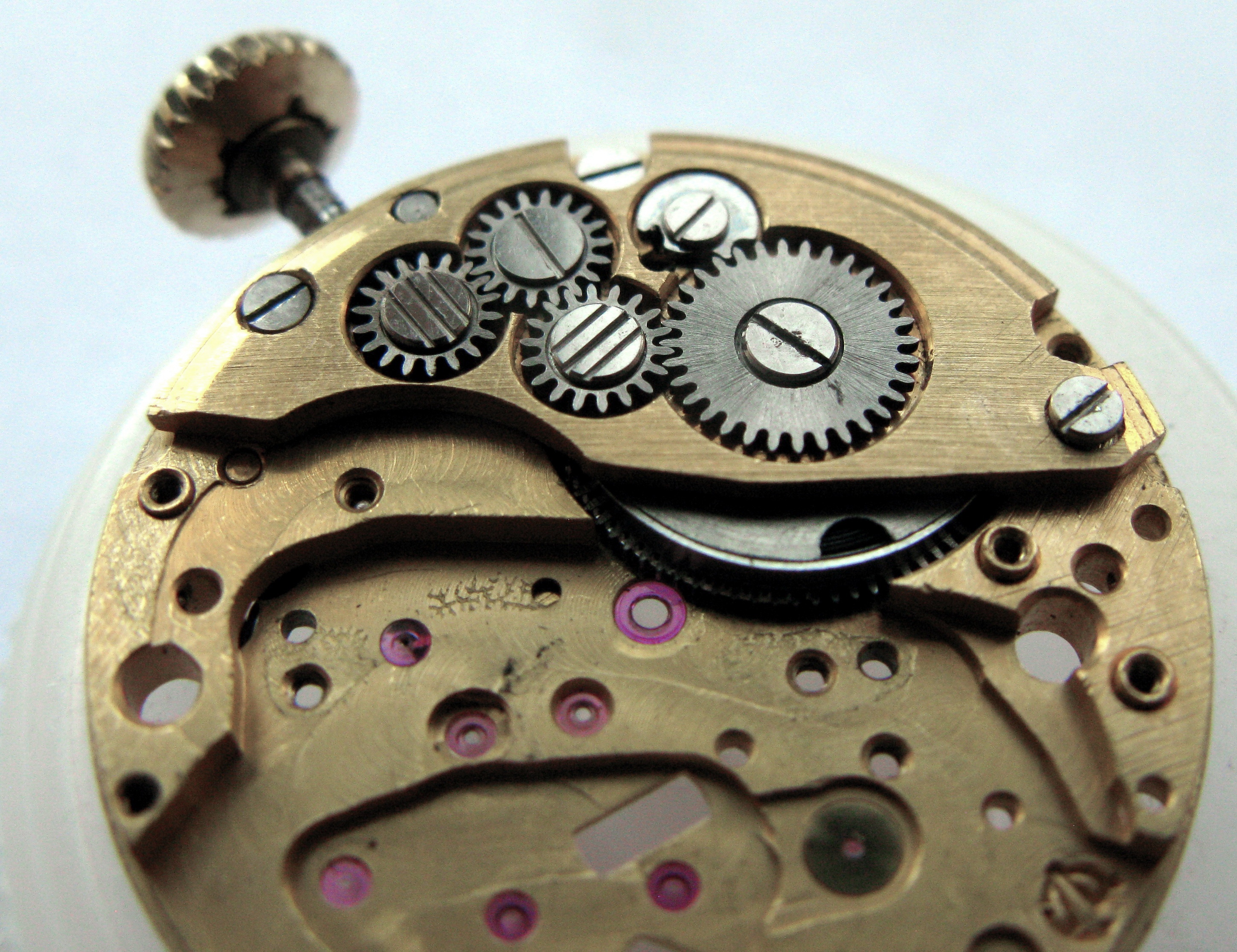

Close view of the motor side showing several transmission wheels under the bridge. — The motor: little of note here except the count of transmission wheels relaying power to and from the barrel.

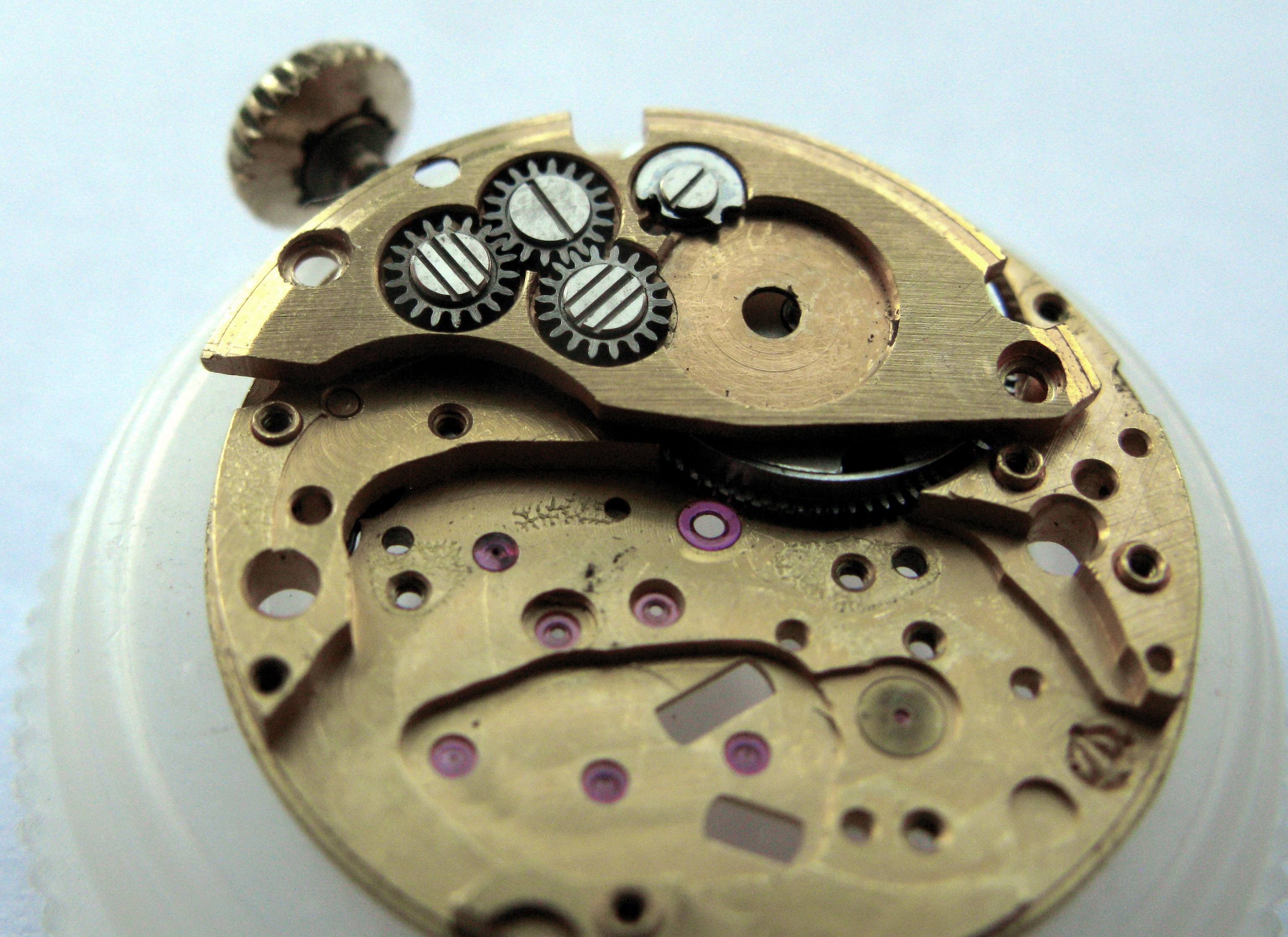

The transmission wheels and bridge of the winding work with their screws visible. — Two of these wheels are held by left-hand-thread screws — recognisable by their triple-slot heads — and must be turned the correct way or risk shearing.

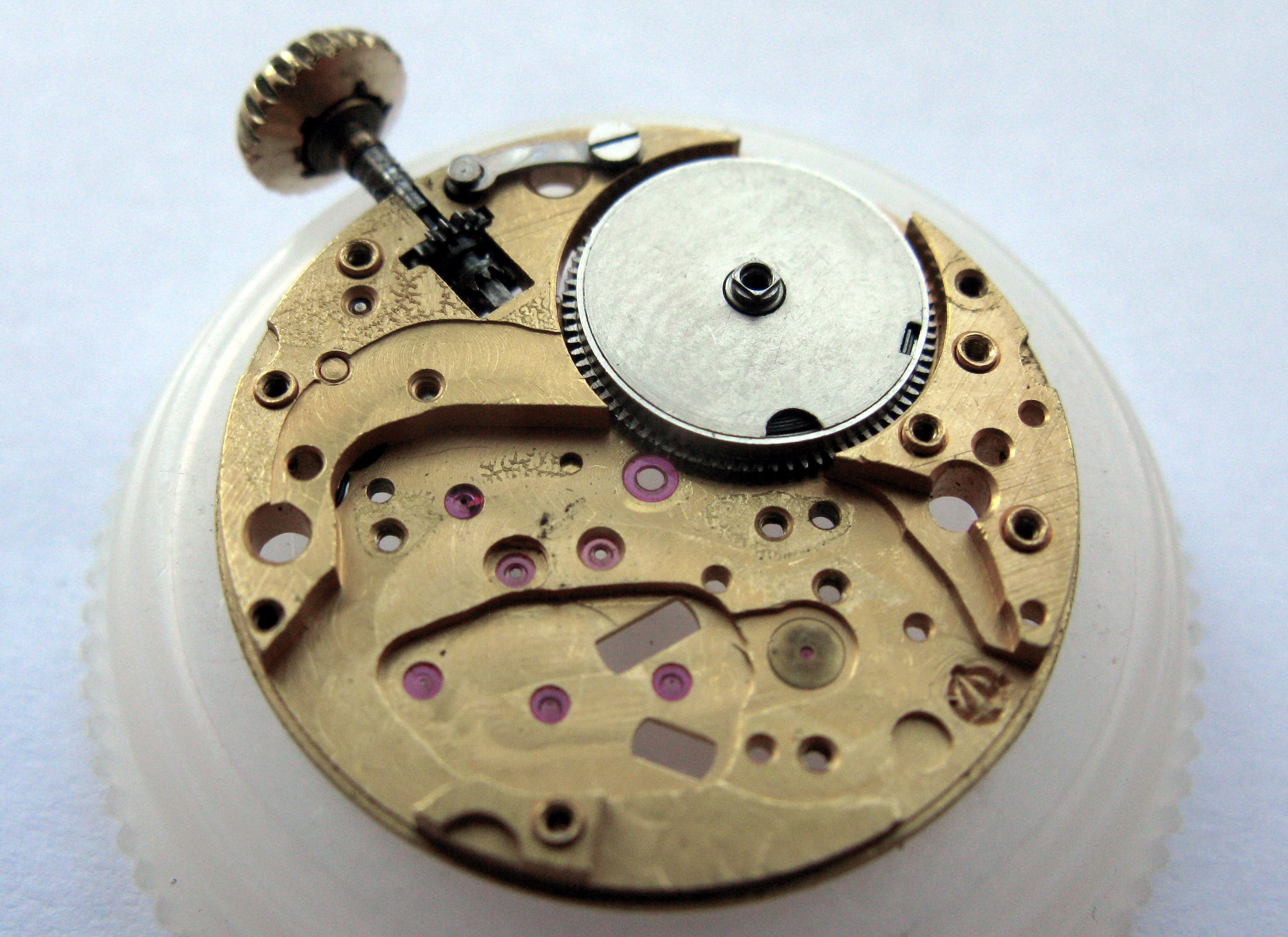

The barrel exposed beneath its bridge with the crown and stem to the left. — The barrel itself is straightforward; lacking visible contamination, it can be cleaned along with its bridge rather than opened up unnecessarily.

Keyless Works with the Spring on the Outside

The keyless works carries a small idiosyncrasy. The setting-lever spring, whose role is usually performed by a finger formed on the keyless cover plate, has instead been taken out onto the outer face of the mainplate. The arrangement is studied before anything is touched: the retaining screw is backed off half a turn, the spring is swung aside, the screw is nipped up again and the spring lifted away. Getting it back exactly where it belongs is precisely what the camera is for. The rest of the keyless components then come apart and join the others on a clean sheet, bound for the benzine bath.

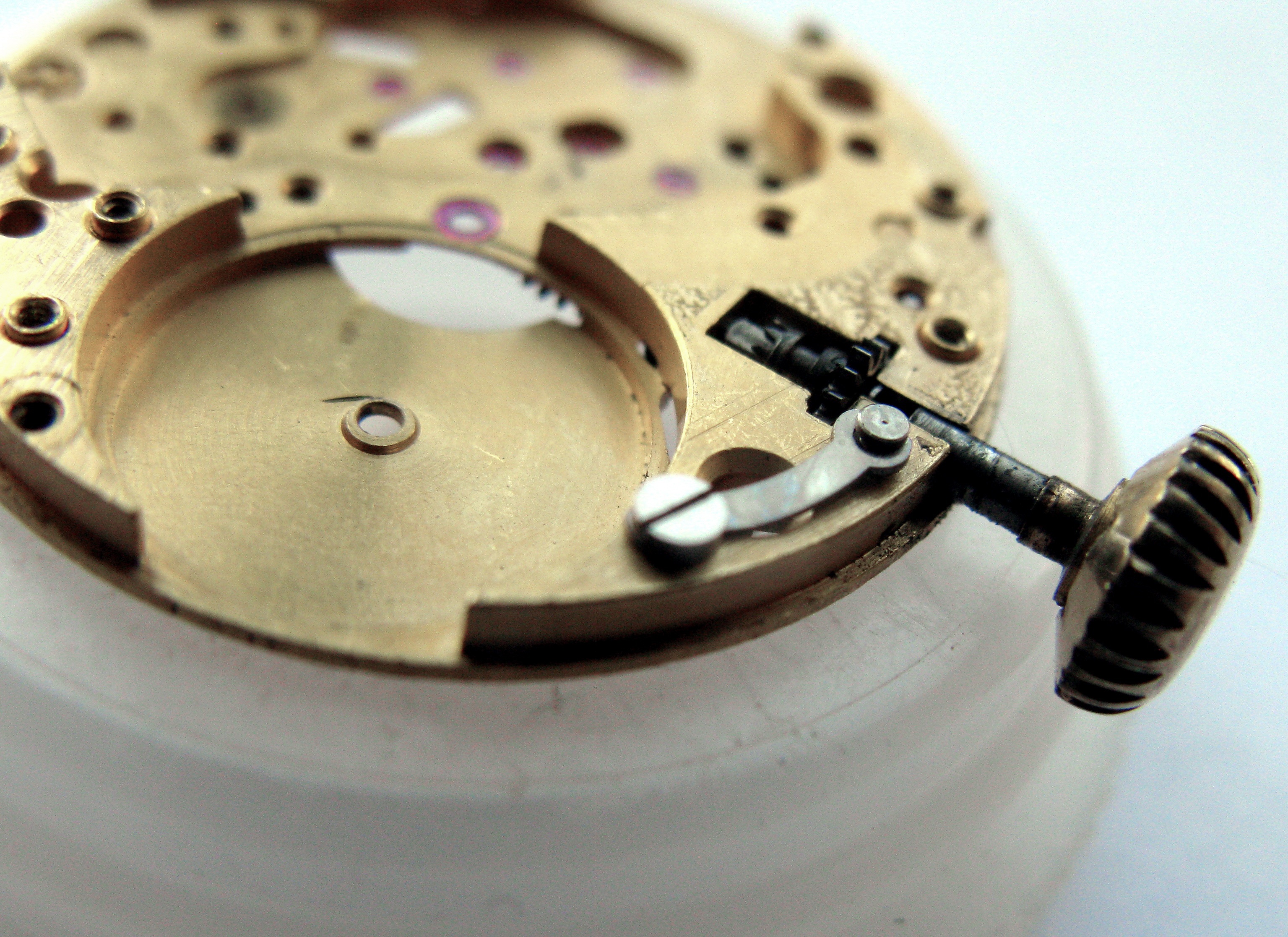

Low-angle of the keyless works showing the setting-lever spring carried on the outside of the mainplate. — The peculiarity of this caliber: the setting-lever spring sits on the outer face of the mainplate rather than being formed as a finger on the keyless cover. Its layout is memorised before anything moves.

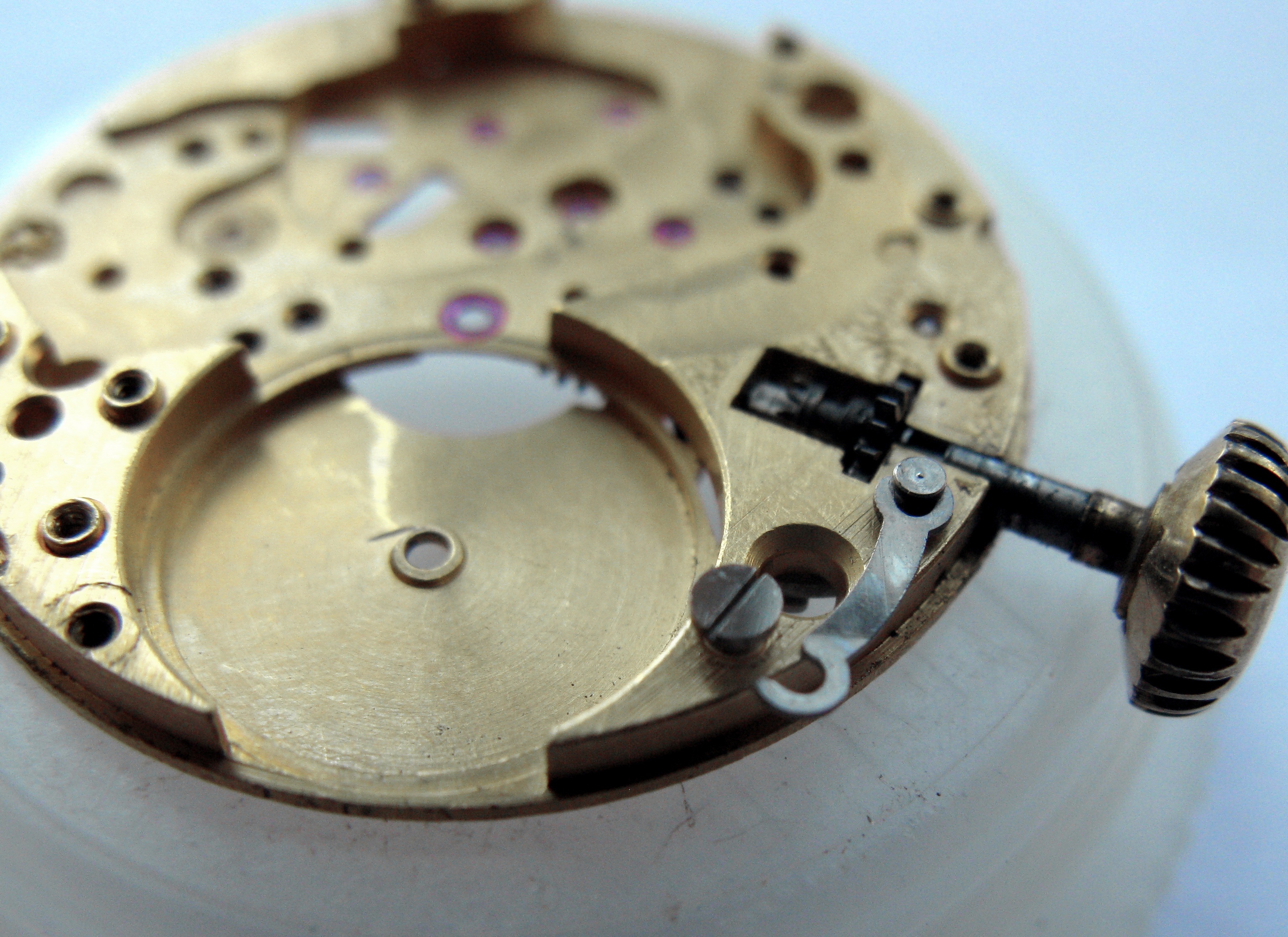

The setting-lever spring released after loosening its screw, crown and stem alongside. — The retaining screw is eased off half a turn and the spring swung clear; returning it to the right place later is the whole reason for the photographs.

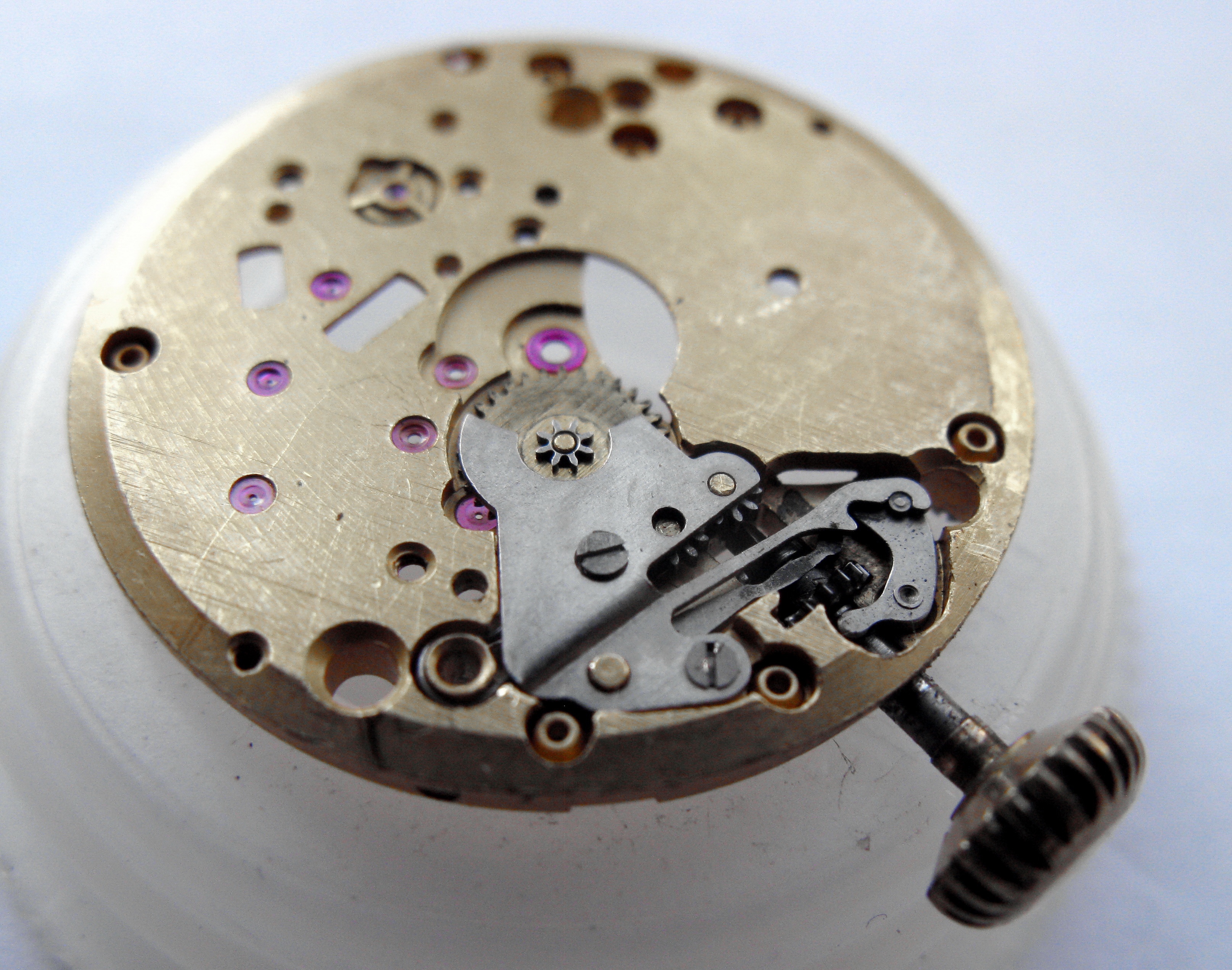

Dial-side mainplate with the keyless works, the setting lever, yoke and sliding pinion around the stem. — The keyless works comes apart: setting lever, yoke and the sliding clutch on the stem are dismantled and set out for cleaning.

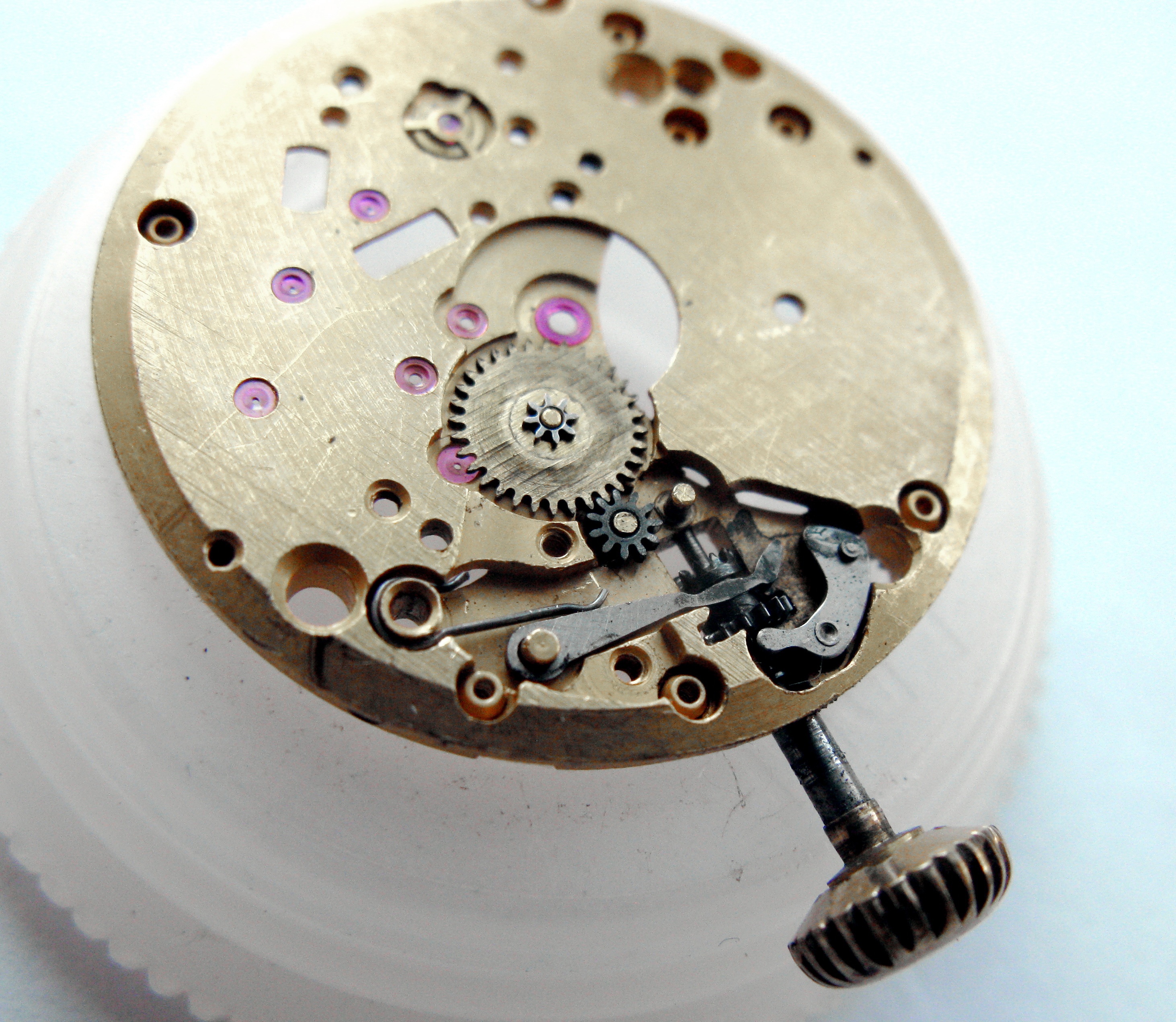

Further view of the dismantled keyless and motion-work components on the mainplate. — The remaining slow-side components are removed in turn, each transferred onto a clean sheet ahead of the bath.

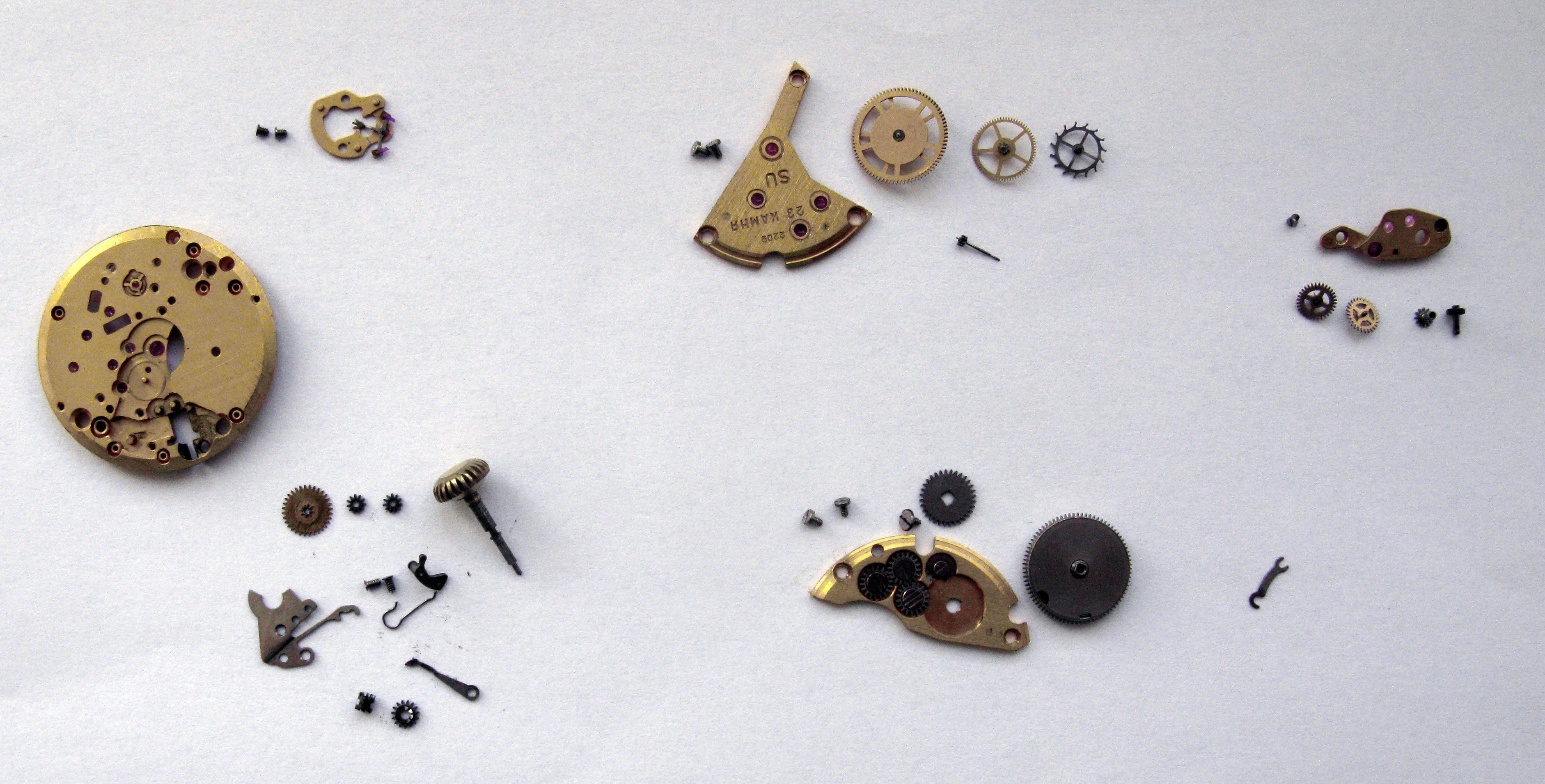

All movement parts laid out in rows on a white sheet, including plates, bridges, wheels, barrel and steelwork. — Fall in, one and all. The fully stripped caliber spread out in order while the case is given a final scrub and the crystal is polished with a little toothpaste.

Reassembly, Beginning at the Slow Side

The rebuild starts a little unconventionally. The setting-lever spring and the lever with its push-piece go on first — partly because the layout almost invites it. From there the work follows the usual sequence, with the caliber's particularities in mind. A drop of oil goes to the central pinion jewel, and "drop" overstates it: the quantity is invisible even on the oiler, yet it is unmistakably present. The central pinion is set in place and the part of it that enters the bridge jewel is oiled now, while it can still be reached. The wheels follow, the bridge closes over them, and the jewels are oiled while still accessible. The going train and seconds pinion go back the same way — a touch of oil on the arbor, the bridge closed, the jewels charged — and then the motor: the barrel is seated, its bridge fitted, and the wheel pivots oiled.

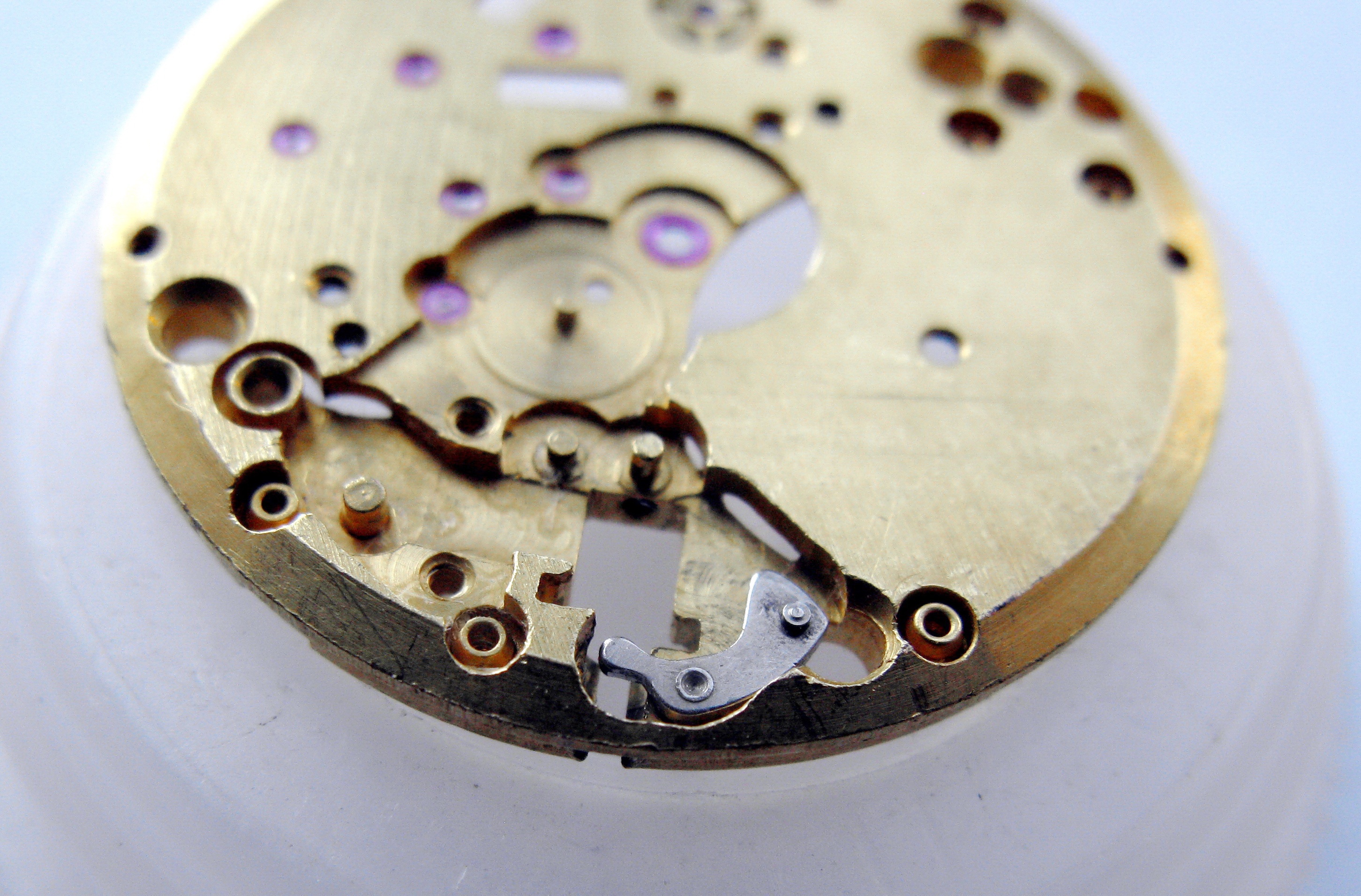

Bare dial-side mainplate with the setting-lever spring and lever installed first. — Reassembly opens unusually: the setting-lever spring and the lever with its push-piece go on first — the layout almost demands it.

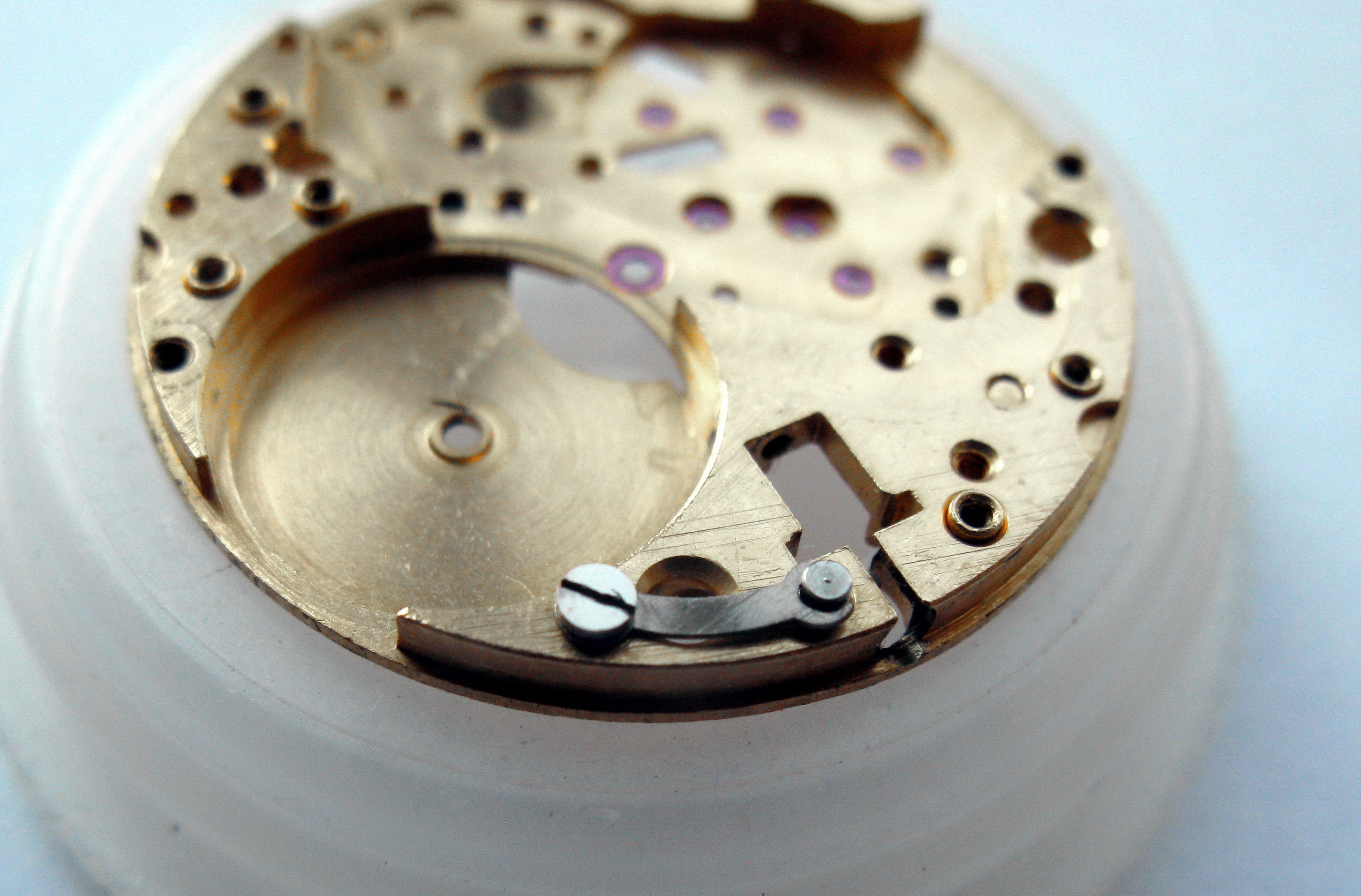

Mainplate showing the barrel seat recess and the seated setting lever. — The slow-side groundwork in place, with the barrel seat clear and the setting lever secured before the train is built back up.

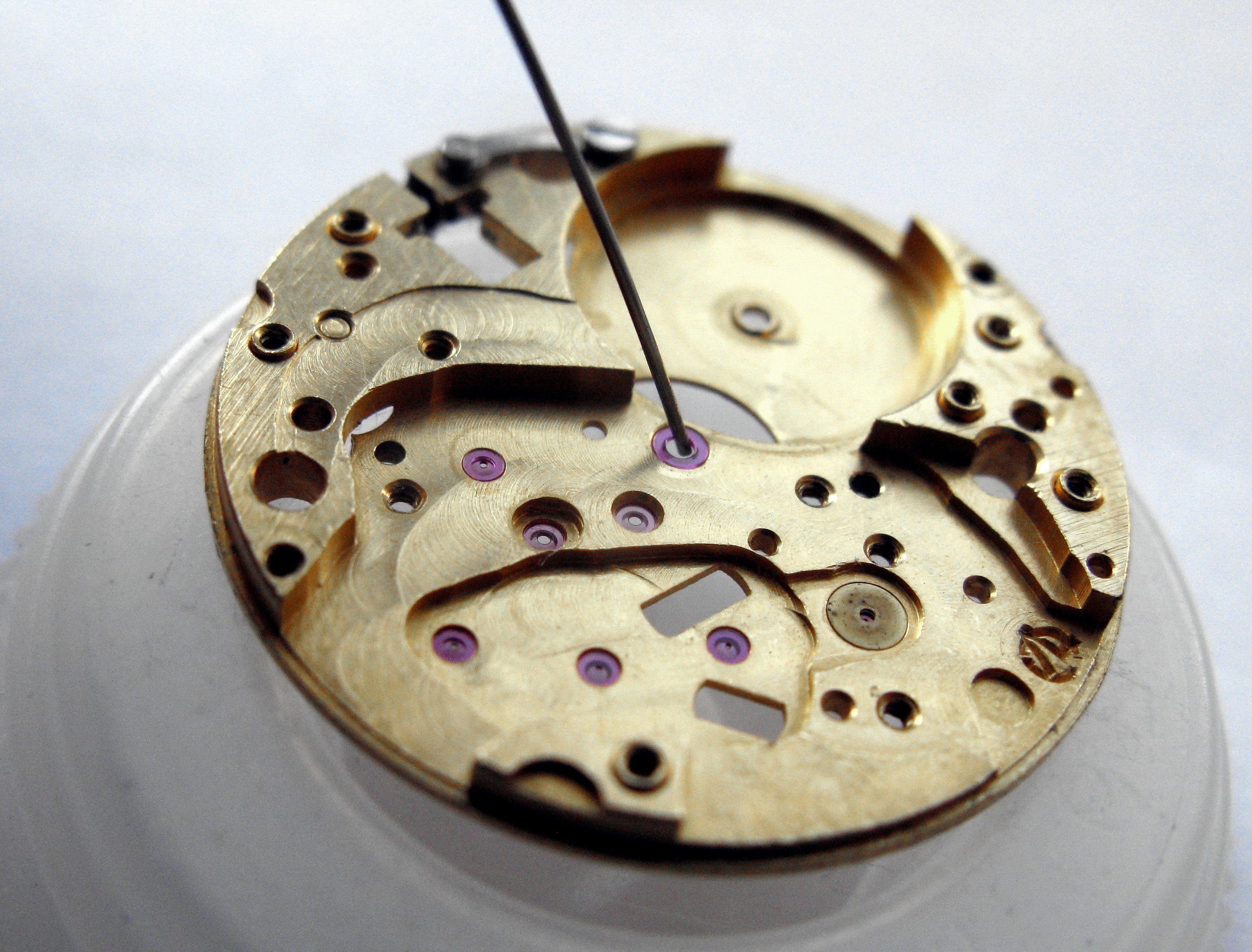

An oiler needle delivering a trace of oil to the central jewel of the mainplate. — A trace of oil to the central pinion jewel. The amount is so small it cannot be seen on the oiler itself — and yet it is there, exactly as the discipline requires.

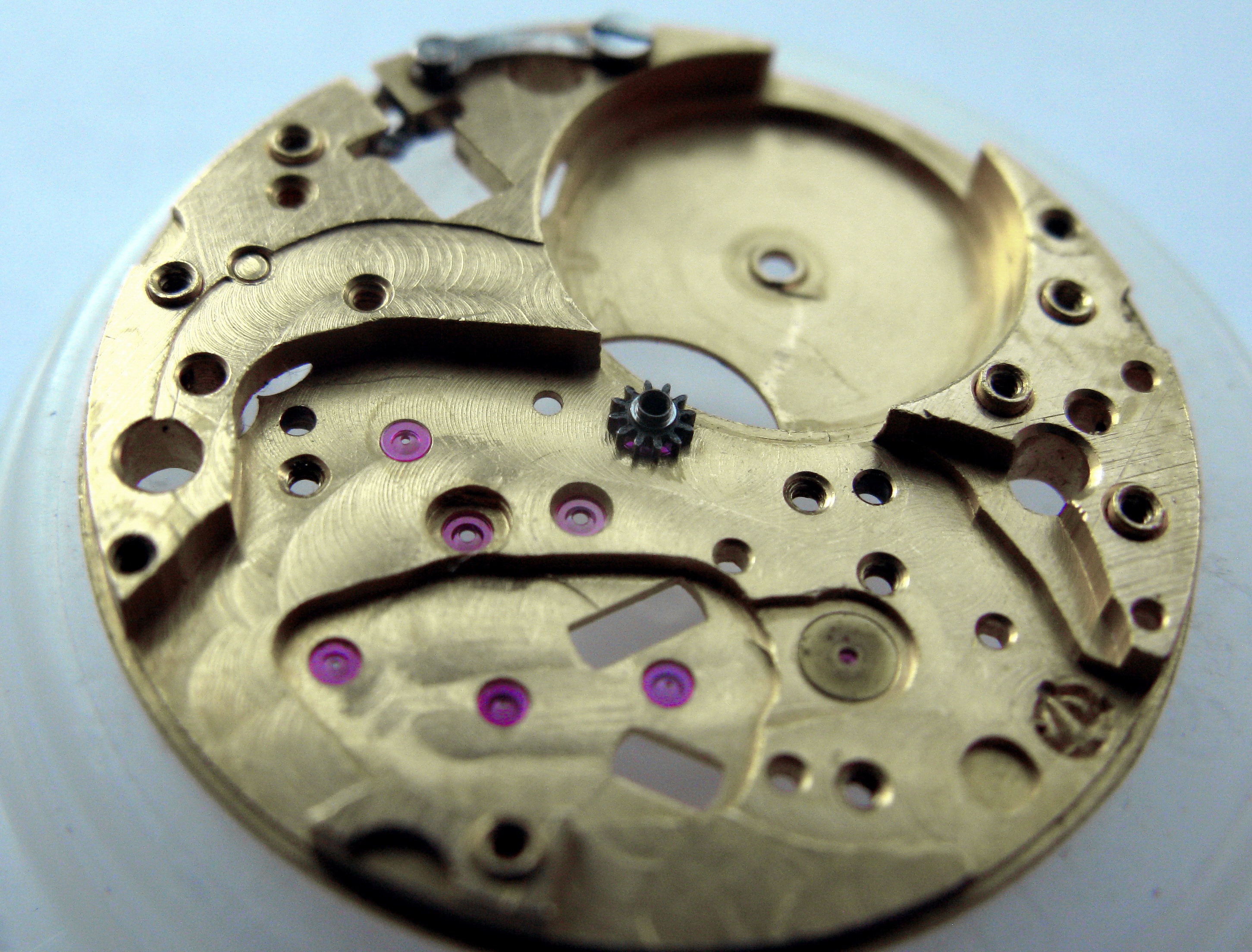

The central pinion reinstalled, standing at the center of the plate. — The central pinion is set back in place, its upper portion oiled now while it can still be reached, before the wheels go over it.

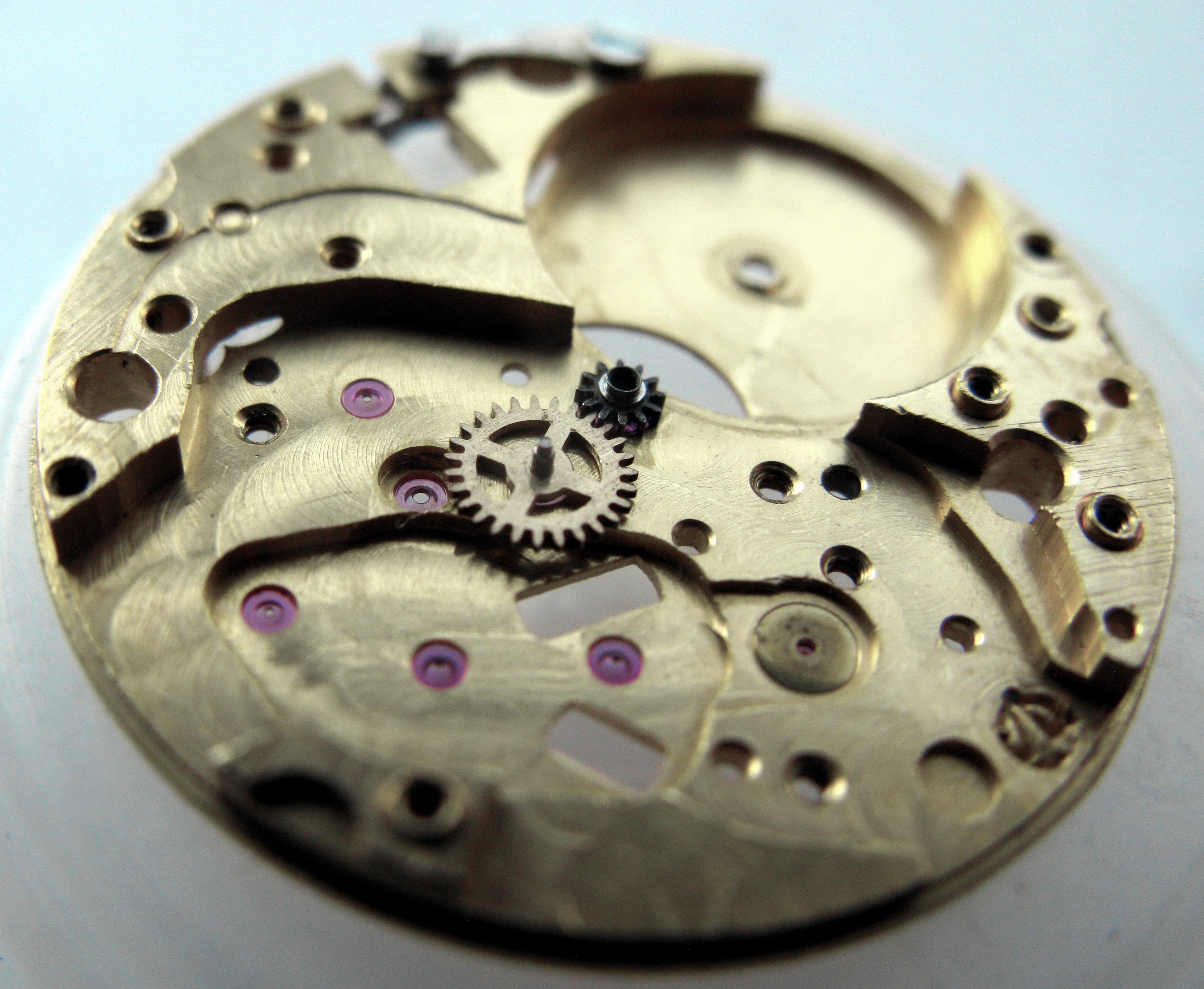

Central pinion with one of the central wheels refitted. — The first of the divided center wheels is dropped into mesh around the central pinion.

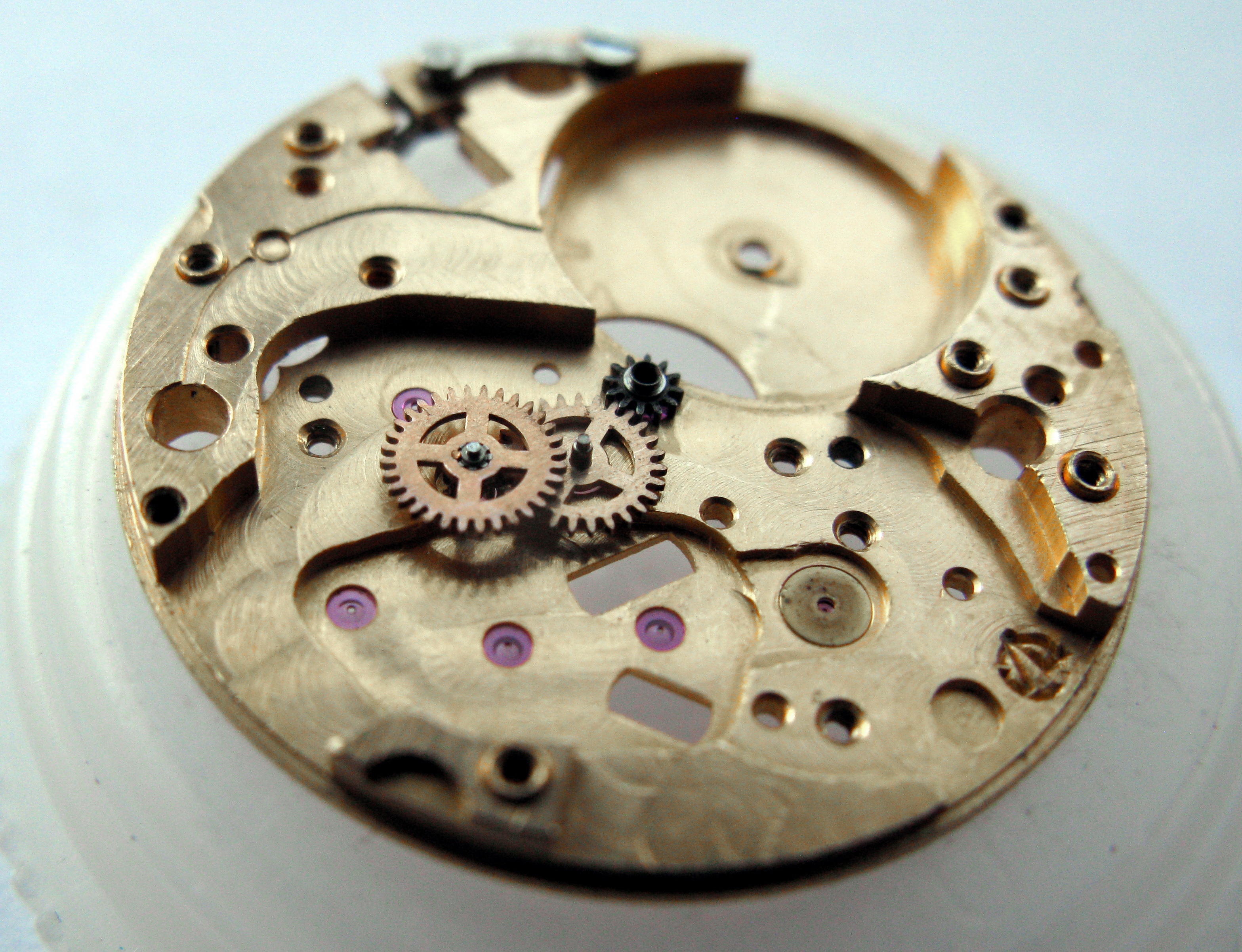

Both split center wheels installed and meshed at the center of the plate. — With both halves of the center wheel seated, the caliber's unusual two-piece arrangement is back in working order.

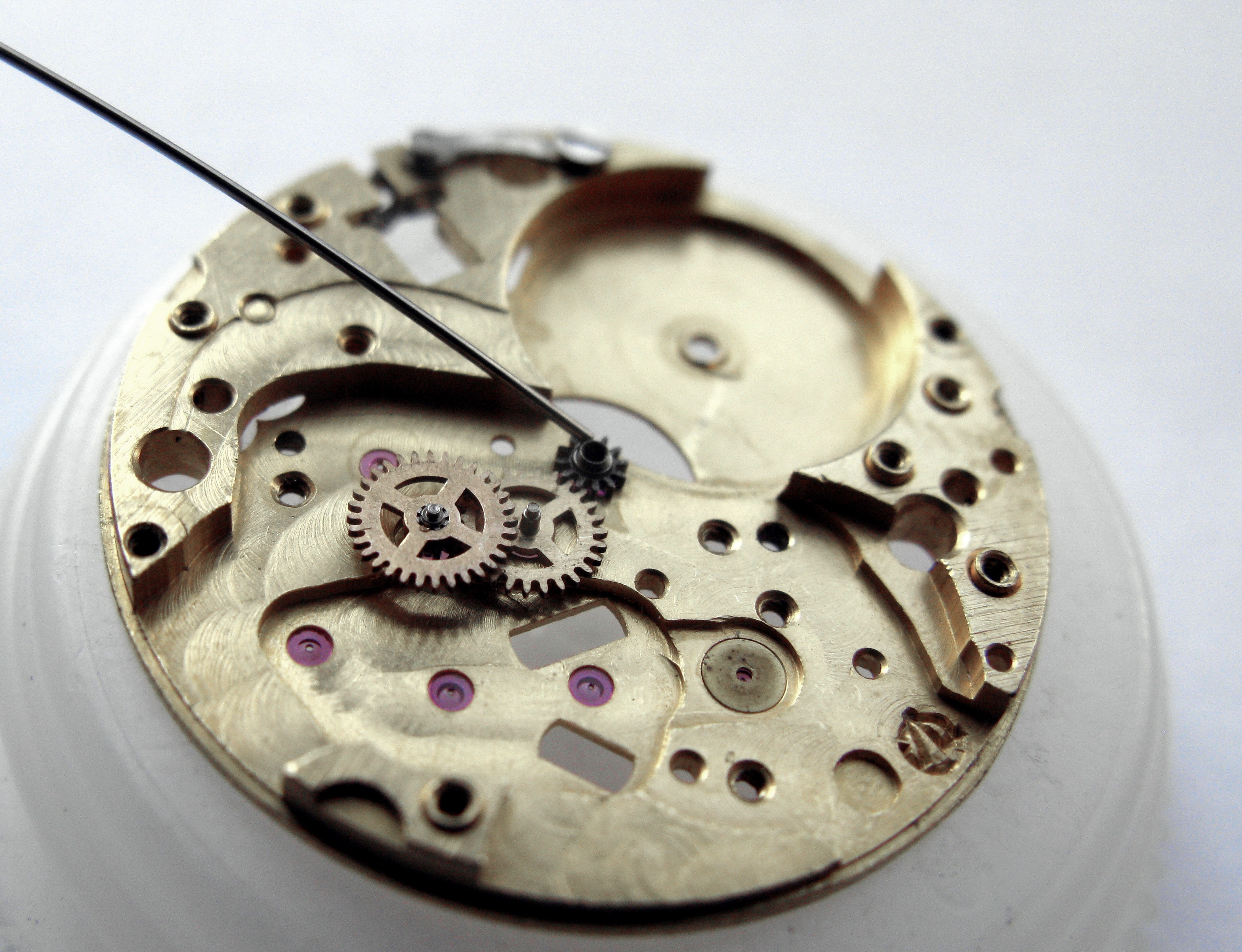

An oiler reaching the central wheels before the bridge is fitted. — Jewels are oiled while still within reach — once the bridge is closed, several of them vanish under the plate for good.

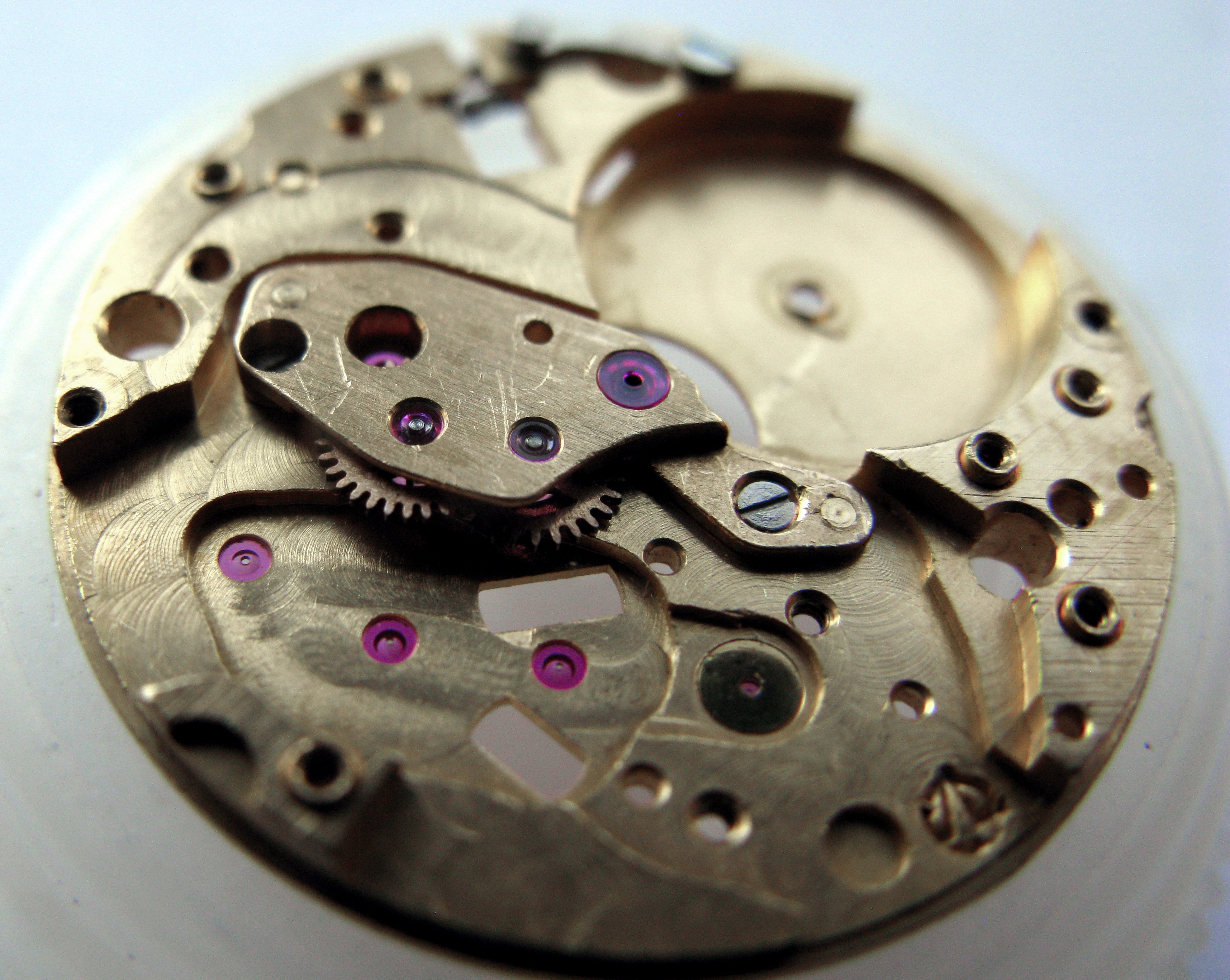

The central-wheels bridge being lowered over the wheels, pink jewels visible. — The central bridge goes back over its wheels, the pivots coaxed one by one into their jeweled holes.

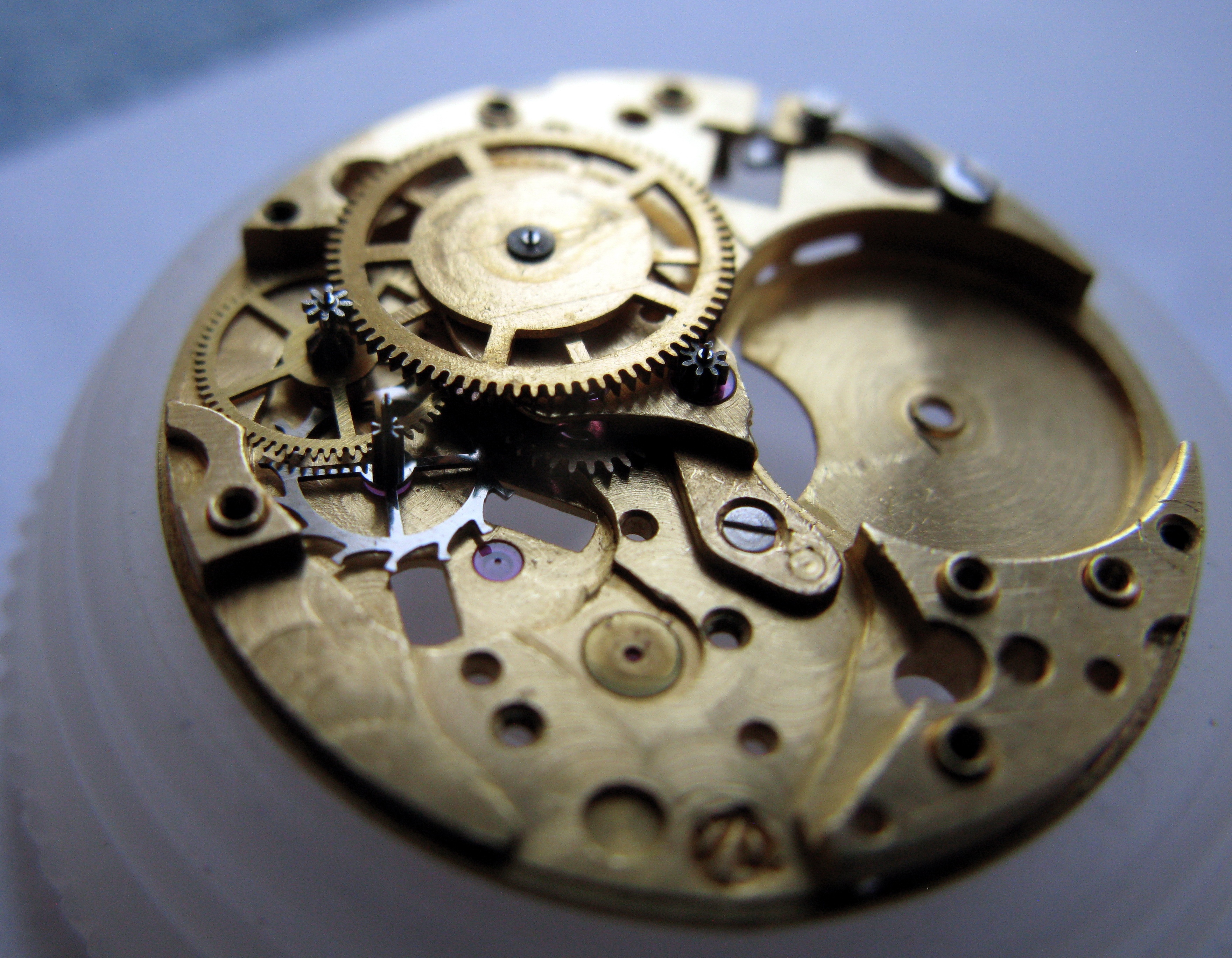

The reassembled going train under its bridge, gilt wheels meshed. — The train is rebuilt — wheels and seconds pinion fitted, the bridge closed, and each jewel given the smallest possible trace of oil.

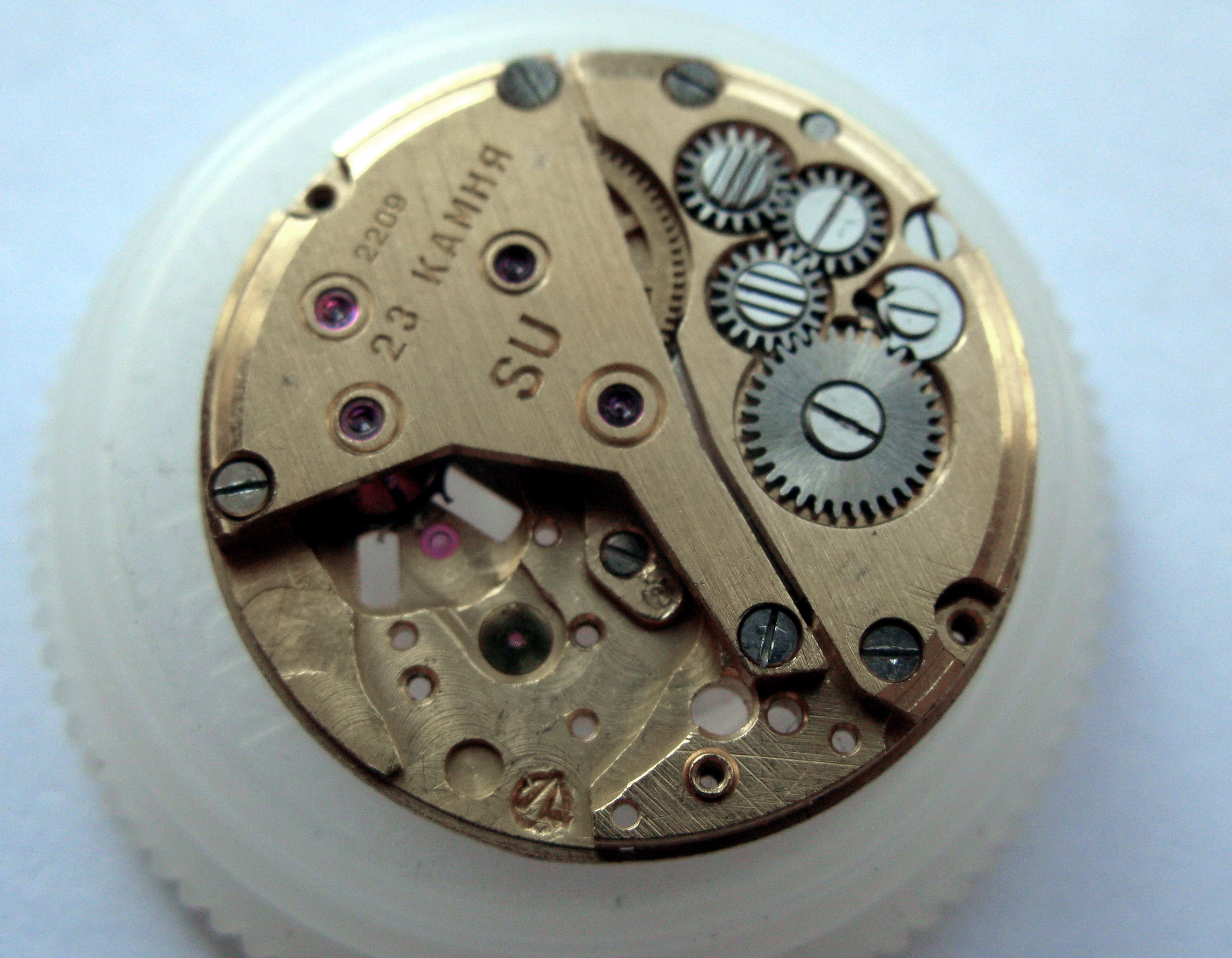

Train side largely reassembled, the engraved bridge and wheels in place over the barrel. — Train and motor back together: the barrel sits under its bridge and the going train is complete, leaving only the escapement to refit.

Escapement and Shock Protection

The fork is next. Before it goes back, oil is applied to the working faces of the pallet stones — and only there, where the green arrows point. The quantity must be confined to the impulse faces alone; let it onto the body of a stone and it will spread, and the escapement will drag itself to a stop. If the dosing does not come out right the first time, the fork is simply rinsed in benzine and the attempt repeated until it does. Then comes the shock protection. Here the cap-jewel is held by a star-shaped lyre spring, and the work must be done with complete care and attention — a part this small, once lost, costs an enormous amount of time to find. With the escapement back together the movement runs, the amplitude looks healthy by eye, and the fine numbers will be set on the timing machine once everything is assembled.

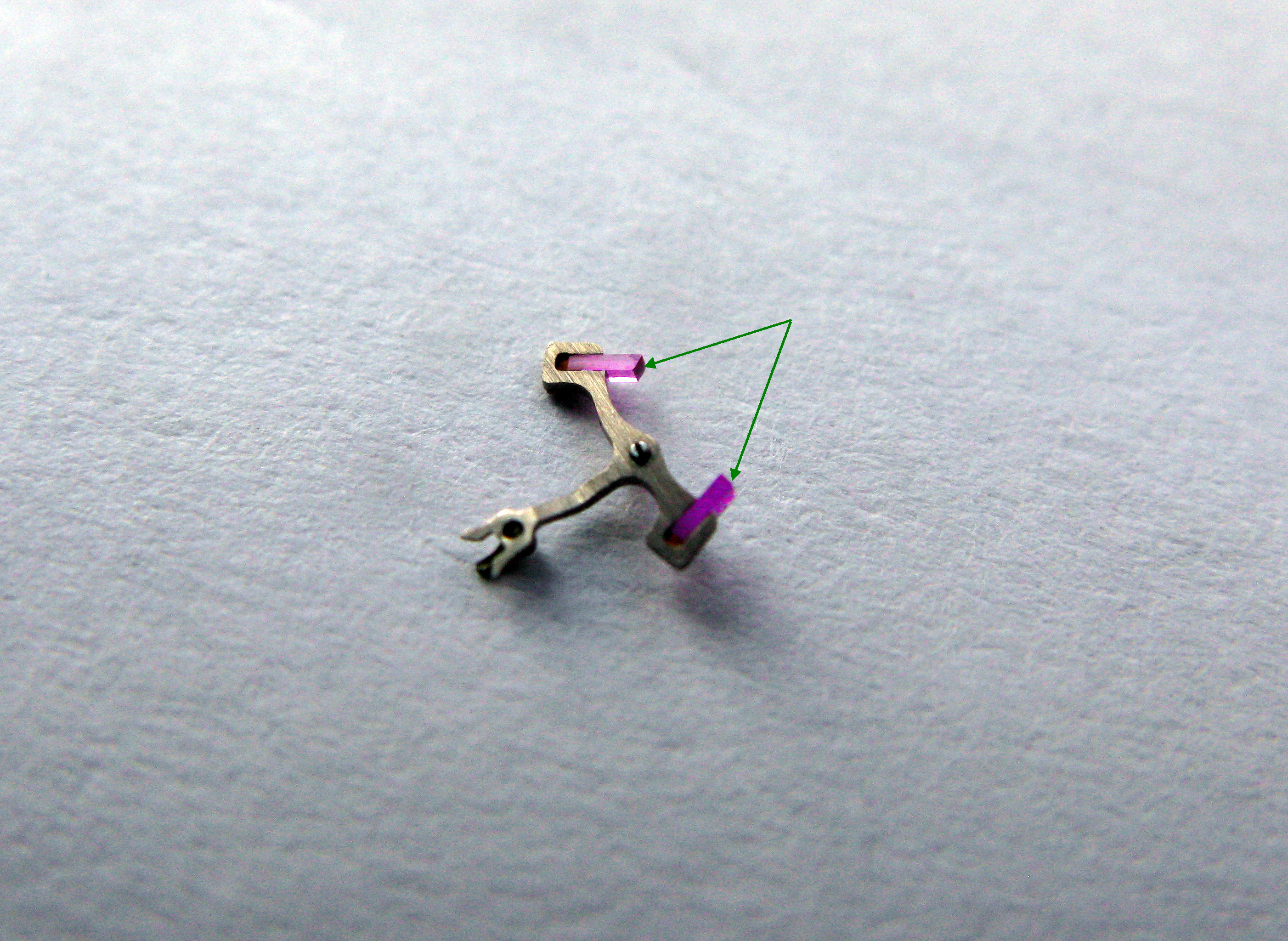

The pallet fork alone on paper with green arrows pointing to the two pallet stones. — Before refitting, oil is placed only on the impulse faces of the pallet stones — exactly where the green arrows point. Stray oil on the body of a stone spreads and gums the escapement.

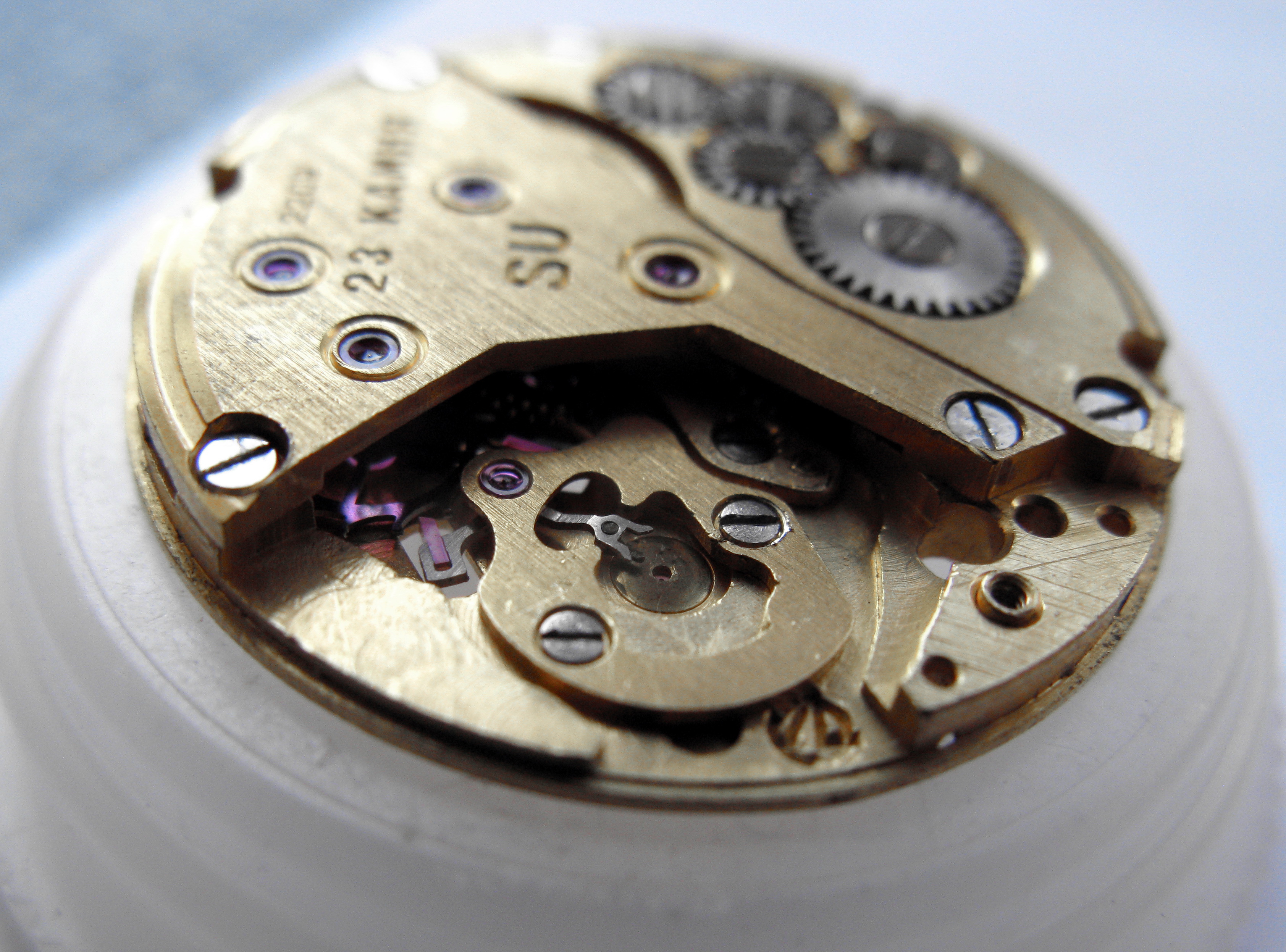

The pallet bridge and fork refitted over the escape wheel on the train side. — The pallet assembly returns to its bridge; a small dark, slightly raised speck on the stone confirms the oil has landed precisely where it should.

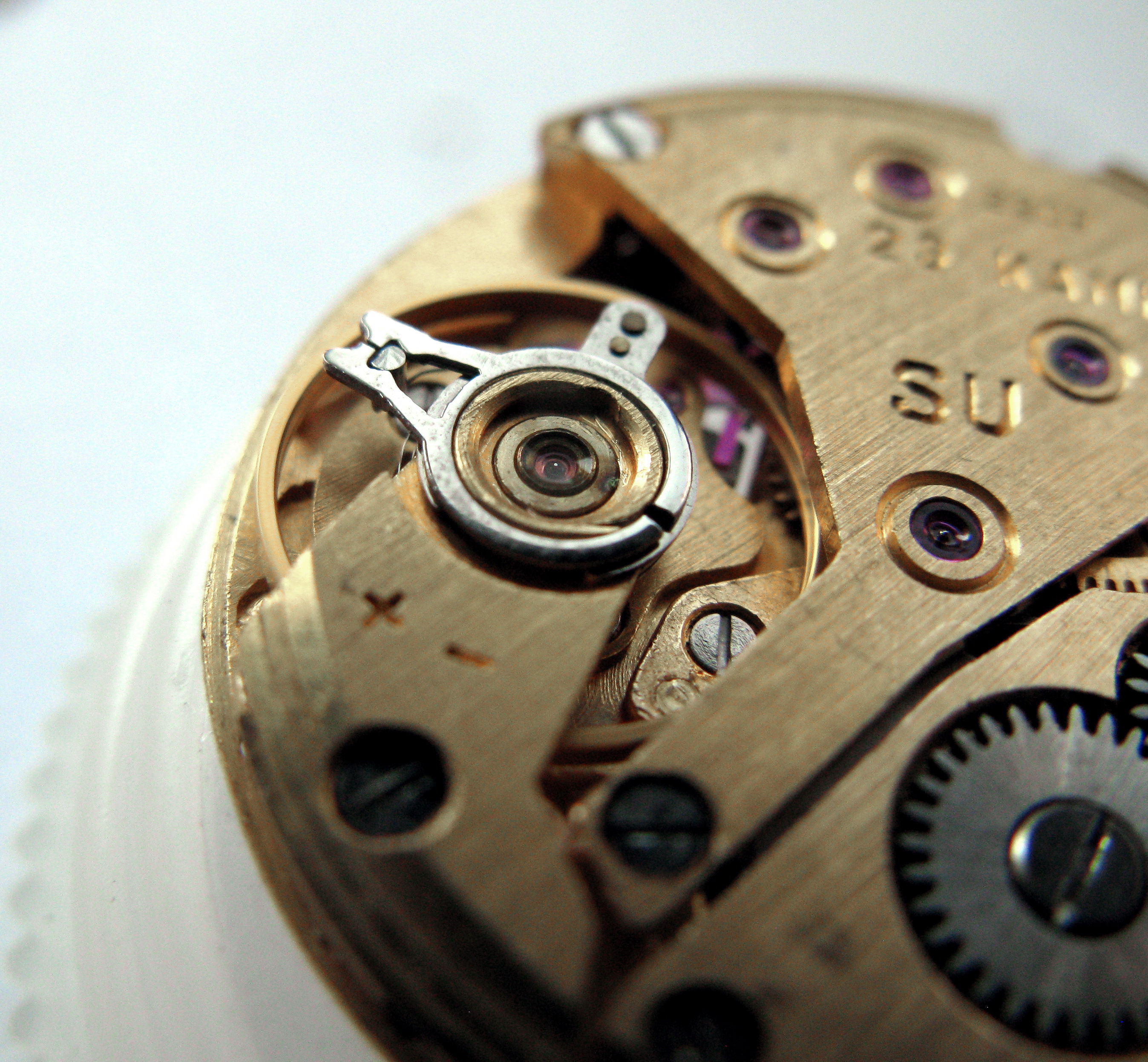

Close-up of the balance cock and its shock setting with the star-shaped incabloc spring. — On to the shock protection. The cap-jewel is retained by a star-shaped lyre spring — exacting work, since a lost part of this size means a long search.

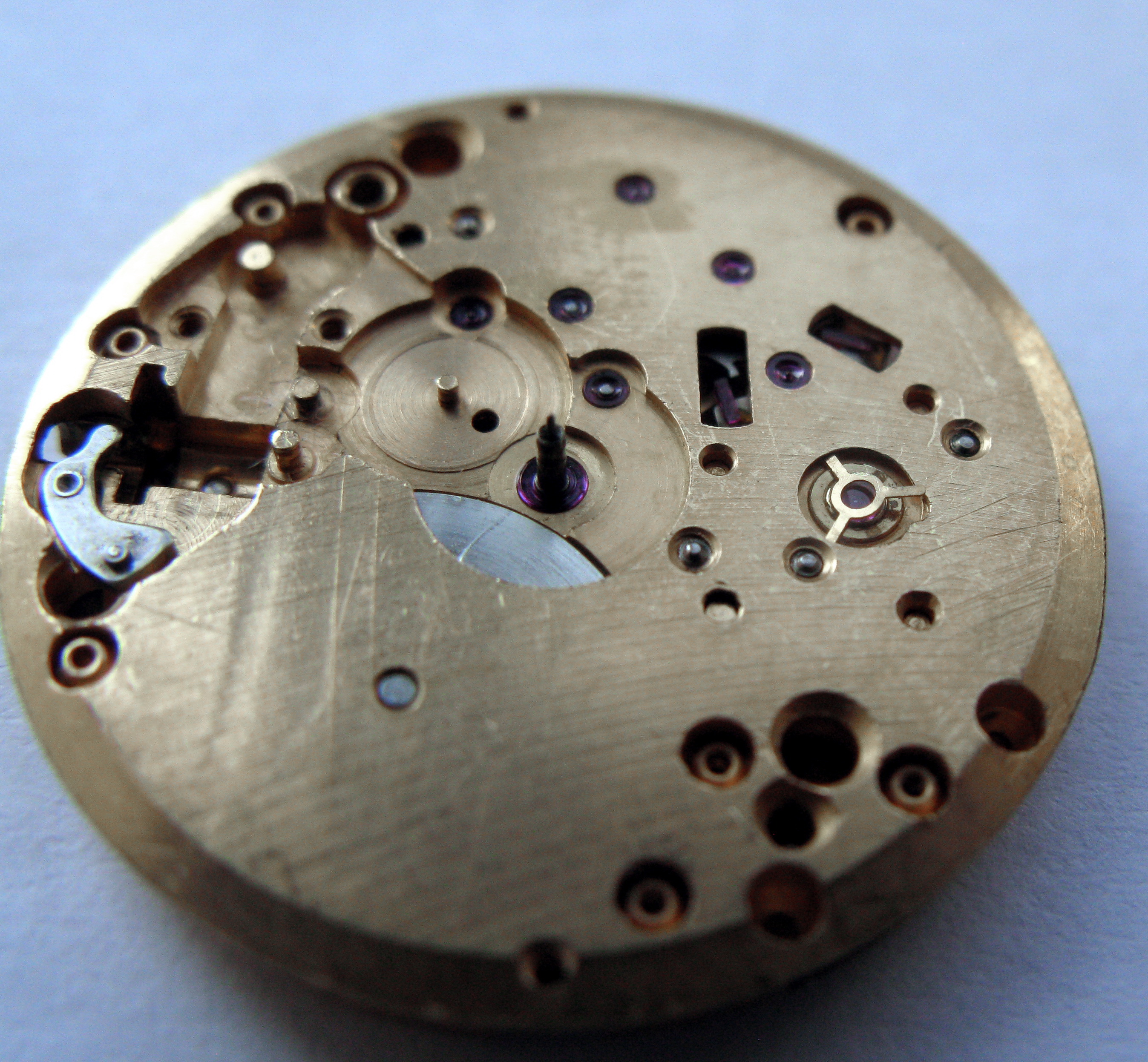

The star-shaped shock spring seated in the lower setting on the engraved mainplate side. — The matching lower setting on the plate, its star spring eased back into place under magnification — the spring is barely a millimetre and a half across.

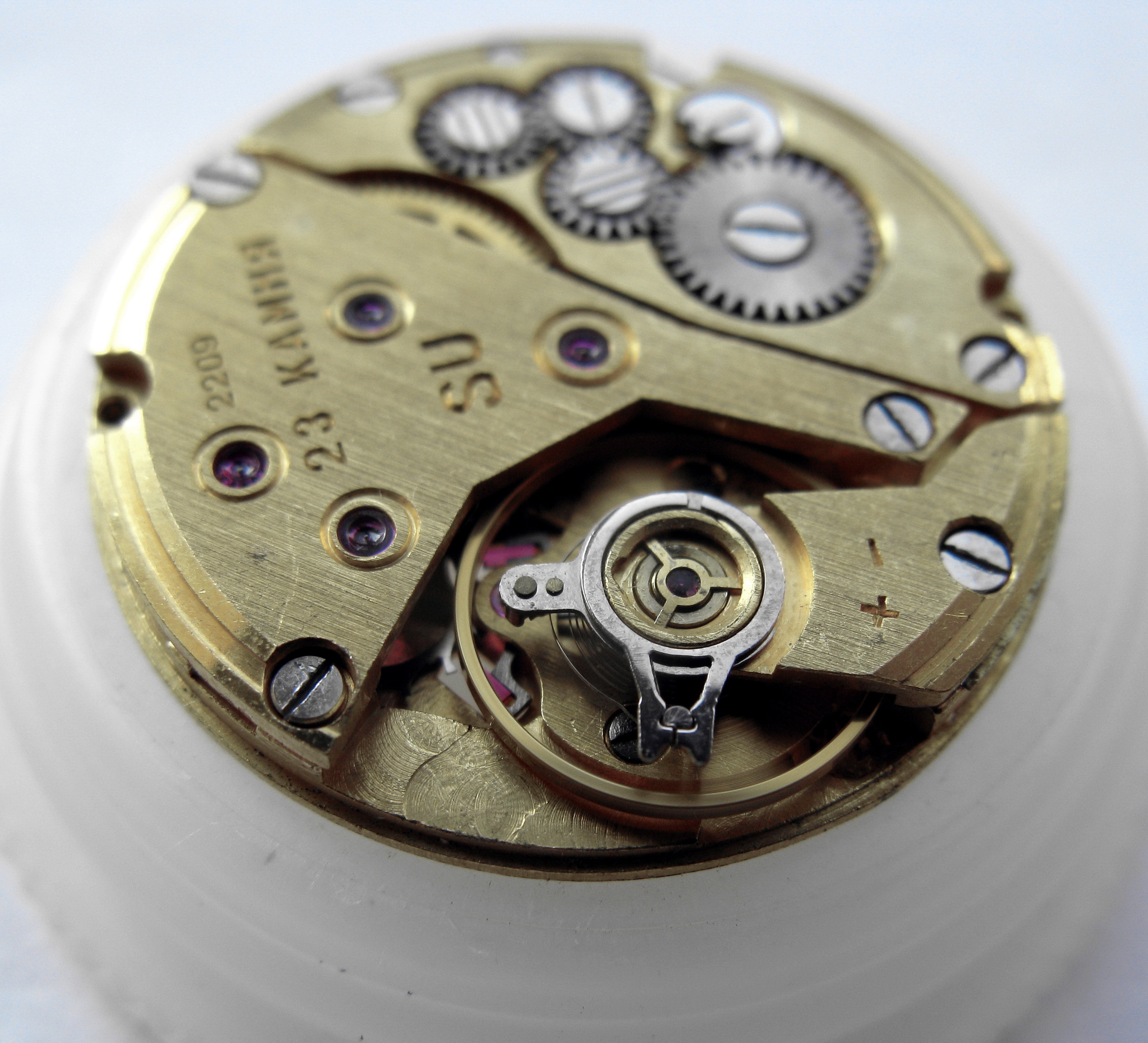

Train side with the going train and the balance seat carrying its completed shock setting and regulator index. — With both shock settings serviced and the balance back at its post, the escapement runs cleanly and the amplitude looks healthy to the eye.

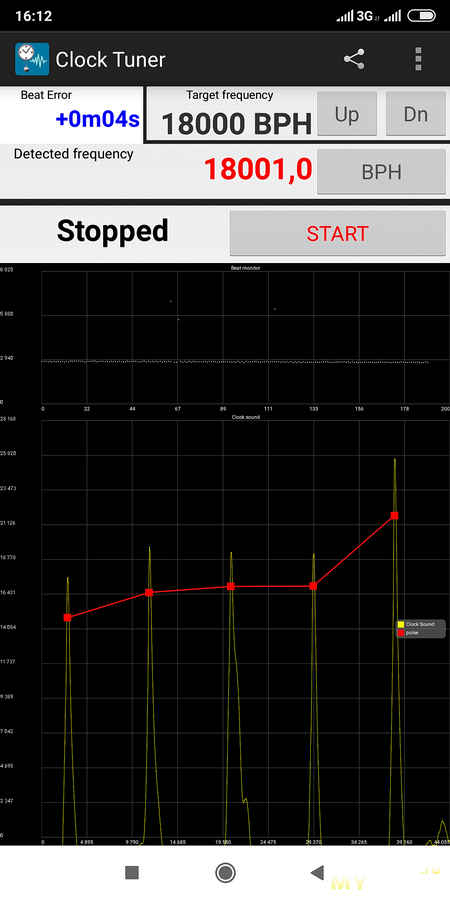

Slow Side, Timing and Back into the Case

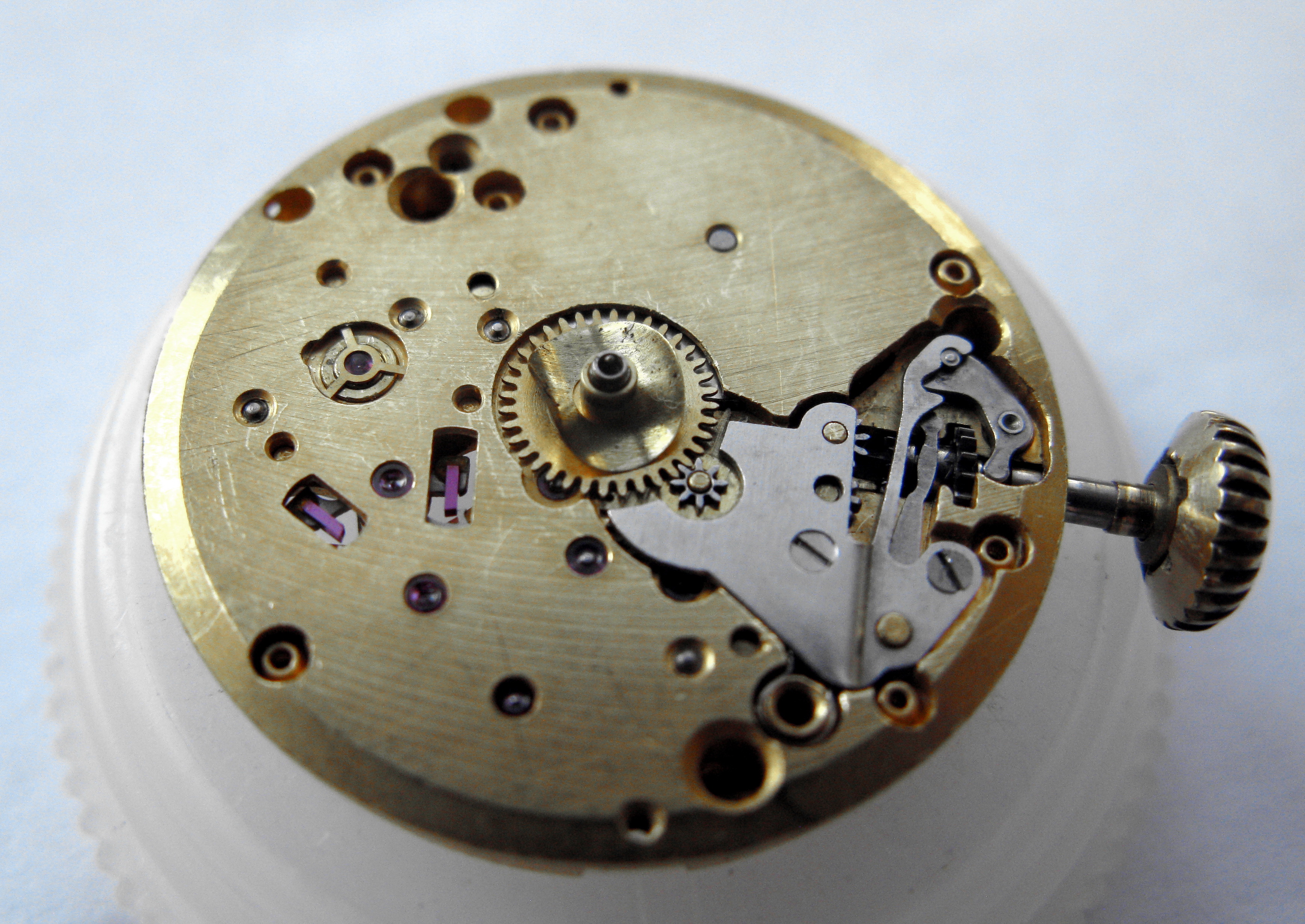

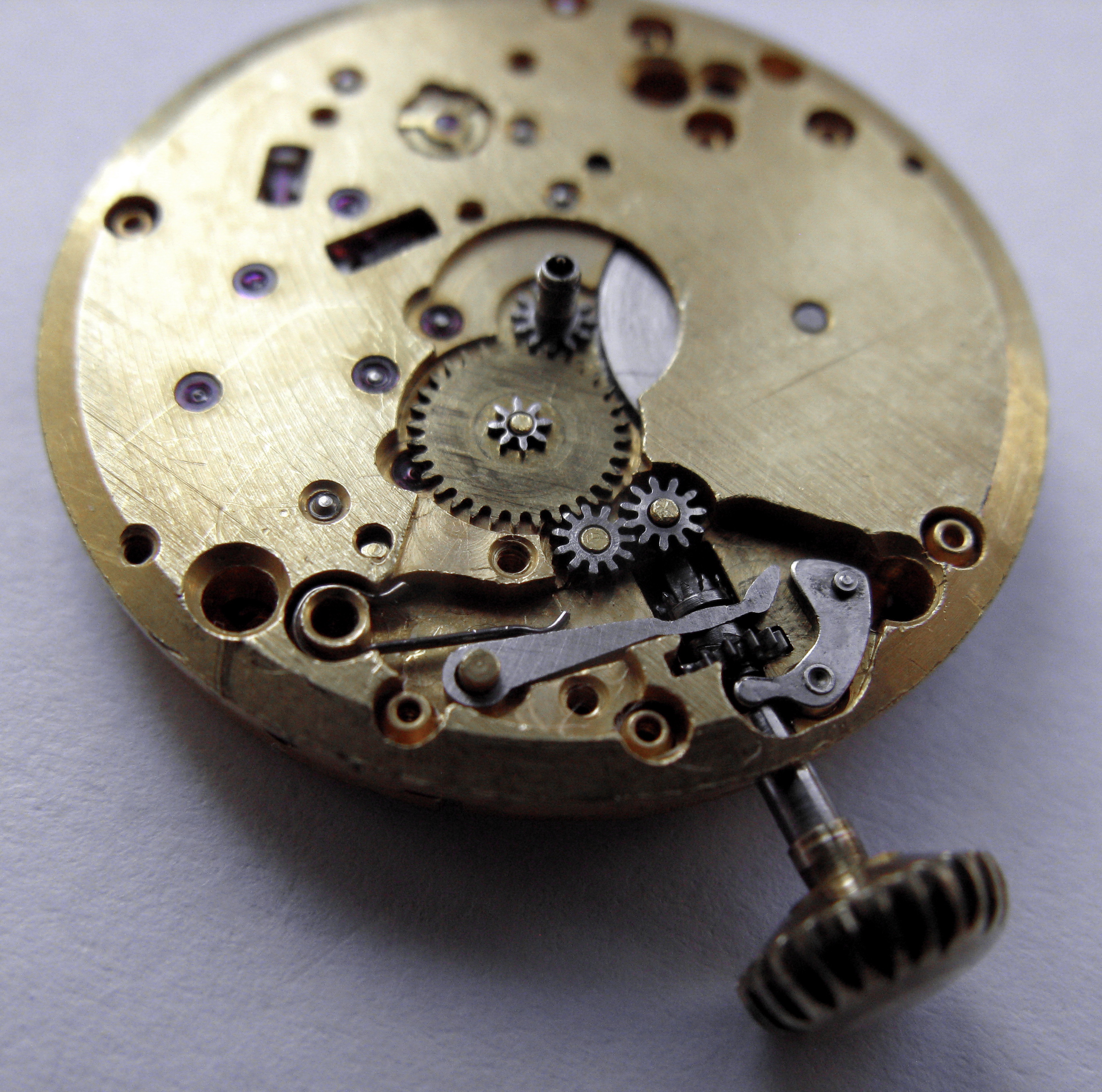

What remains is the slow side and the keyless works, reassembled around the stem, followed by the dial and hands. A final check confirms nothing has been forgotten, and the movement goes home into its case. On the timing app the result is genuinely satisfying — 18,001 beats per hour against a target of 18,000, with a beat error of only a few seconds. For a movement of this age and this fragility, that is a result to be pleased with. The Minsk plant — and Luch in particular, with its long line of thin and ultra-thin calibers — earned its reputation honestly, and this small ambassador of it now keeps proper time once more.
